SAE Plain/Dacromet Washer/Flat Steel Washer For Construction
Standard:SAE
Description:
SAE Flat Steel Washers are essential components for ensuring reliable fastening in automotive, construction, and machinery applications. Their robust design and adherence to SAE standards make them a trusted choice for engineers and manufacturers.
Flat Steel Washer Features
Size range: The SAE washer is available in a range of sizes, typically specified in inches. The common size range for SAE washers is 1/4" to 3". This indicates that the washer is available in various diameters to accommodate different sizes of bolts or nuts.
Finish options: SAE washers are available in different finishes, including plain and Dacromet.
1.Plain finish: This refers to a washer with no additional coating or plating. It has a natural steel appearance and does not provide any particular corrosion resistance. It is suitable for general applications where corrosion is not a major concern.
2.Dacromet: Dacromet is a type of coating that provides excellent corrosion resistance. It is a metal-polymer composite coating that offers high durability and protection against various environmental conditions, including moisture, saltwater, and chemicals.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner |
Inner diameter(min) |
Outside diameter(max) |
Outside diameter(min) |
Thickness |
Thickness (min) |
| 1/4" | 16.26 | 15.75 | 7.52 | 7.01 | 2.03 | 1.3 |
| 5/16" | 17.36 | 17.3 | 9.12 | 8.61 | 2.03 | 1.3 |
| 3/8" | 21 | 20.45 | 10.59 | 10.19 | 2.03 | 1.3 |
| 7/16" | 23.8 | 23.24 | 12.29 | 11.79 | 2.03 | 1.3 |
| 1/2" | 27.74 | 26.8 | 13.87 | 13.36 | 3.07 | 1.88 |
| 9/16" | 30.12 | 29.18 | 15.47 | 14.96 | 3.07 | 1.88 |
| 5/8" | 34.09 | 33.15 | 17.42 | 16.48 | 3.07 | 1.88 |
| 3/4" | 38.07 | 37.13 | 21.39 | 20.45 | 4.06 | 2.74 |
| 7/8" | 45.21 | 44.27 | 24.58 | 23.65 | 4.06 | 2.74 |
| 1" | 51.56 | 50.62 | 27.74 | 26.8 | 4.06 | 2.74 |
| 1-1/8" | 57.91 | 56.97 | 32.51 | 31.57 | 4.06 | 2.74 |
| 1-1/4" | 64.26 | 63.32 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 70.61 | 69.67 | 38.86 | 37.92 | 4.88 | 3.45 |
| 1-1/2" | 76.96 | 76.02 | 42.04 | 41.1 | 4.88 | 3.45 |

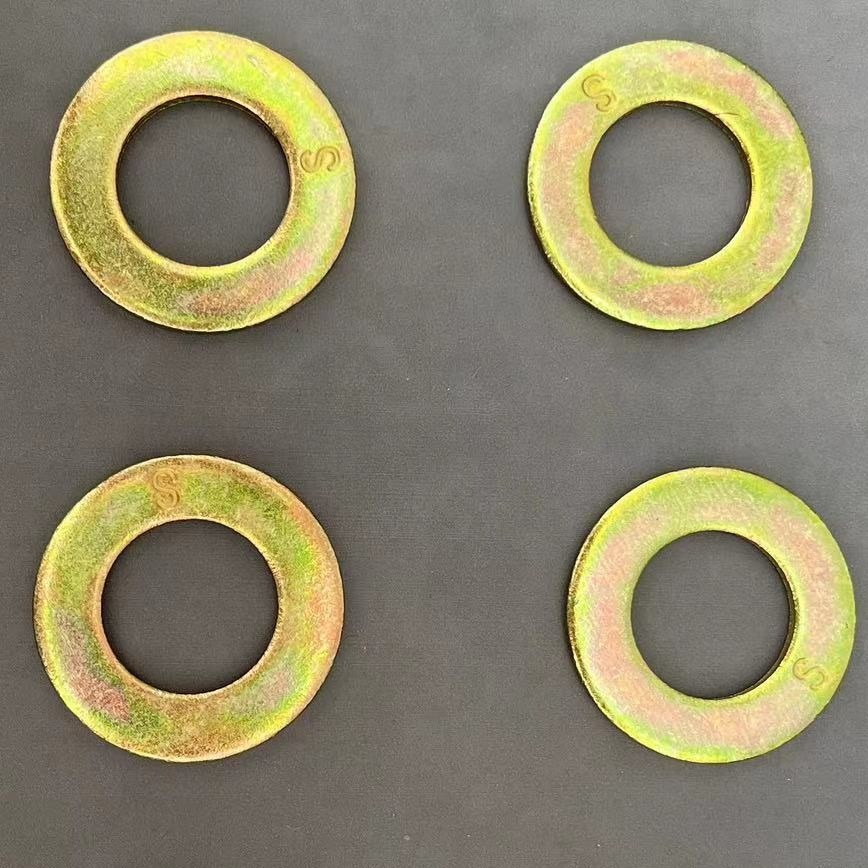

Products pictures for Flat washers
