Standard:F436M
Description:
The F436M Washer/Flat Steel Washer is a specific type of washer designed for use with metric fasteners. It is made from steel and features a black oxide coating for enhanced corrosion resistance and a sleek appearance. The F436M Washer is available in a range of sizes, from M12 to M100, to accommodate various bolt diameters.
Here are some key details about the F436M Washer/Flat Steel Washer:
1.Size Range: The F436M Washer is available in sizes ranging from M12 to M100.
2.Material: The washer is made from steel, which provides strength and durability for reliable performance in demanding applications.
3.Coating: The F436M Washer is coated with black oxide. Black oxide coating not only provides a decorative black finish but also offers corrosion resistance, reducing the risk of rust and extending the lifespan of the washer.
4.Usage: The F436M Washer is commonly used in structural applications where high-strength fastening is required. It is designed to distribute the load and provide a smooth bearing surface under the head of the bolt or nut.
| Material | 45#/40CR |
| Size | M12-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter(max) | Inner diameter(min) | Outside diameter(max) | Outside diameter(min) |
Thickness (max) |
Thickness (min) |
|---|---|---|---|---|---|---|
| M12 | 14.4 | 14.0 | 27.0 | 25.7 | 4.6 | 3.1 |
| M14 | 16.4 | 16.0 | 30.0 | 28.7 | 4.6 | 3.1 |
| M16 | 18.4 | 18.0 | 34.0 | 32.4 | 4.6 | 3.1 |
| M20 | 22.5 | 22.0 | 42.0 | 40.4 | 4.6 | 3.1 |
| M22 | 24.5 | 24.0 | 44.0 | 42.4 | 4.6 | 3.4 |
| M24 | 26.5 | 26.0 | 50.5 | 48.4 | 4.6 | 3.4 |
| M27 | 30.5 | 30.0 | 56.0 | 54.1 | 4.6 | 3.4 |
| M30 | 33.6 | 33.0 | 60.0 | 58.1 | 4.6 | 3.4 |
| M36 | 39.6 | 39.0 | 72.0 | 70.1 | 4.6 | 3.4 |
| M42 | 45.6 | 45.0 | 84.0 | 81.8 | 7.2 | 4.6 |
| M48 | 52.7 | 52.0 | 95.0 | 92.8 | 7.2 | 4.6 |
| M56 | 62.7 | 62.0 | 107.0 | 104.8 | 8.7 | 6.1 |
| M64 | 70.7 | 70.0 | 118.0 | 115.8 | 8.7 | 6.1 |
| M72 | 78.7 | 78.0 | 130.0 | 127.5 | 8.7 | 6.1 |
| M80 | 86.9 | 86.0 | 142.0 | 139.5 | 8.7 | 6.1 |
| M90 | 96.9 | 96.0 | 159.0 | 156.5 | 8.7 | 6.1 |
| M100 | 107.9 | 107.0 | 176.0 | 173.5 | 8.7 | 6.1 |

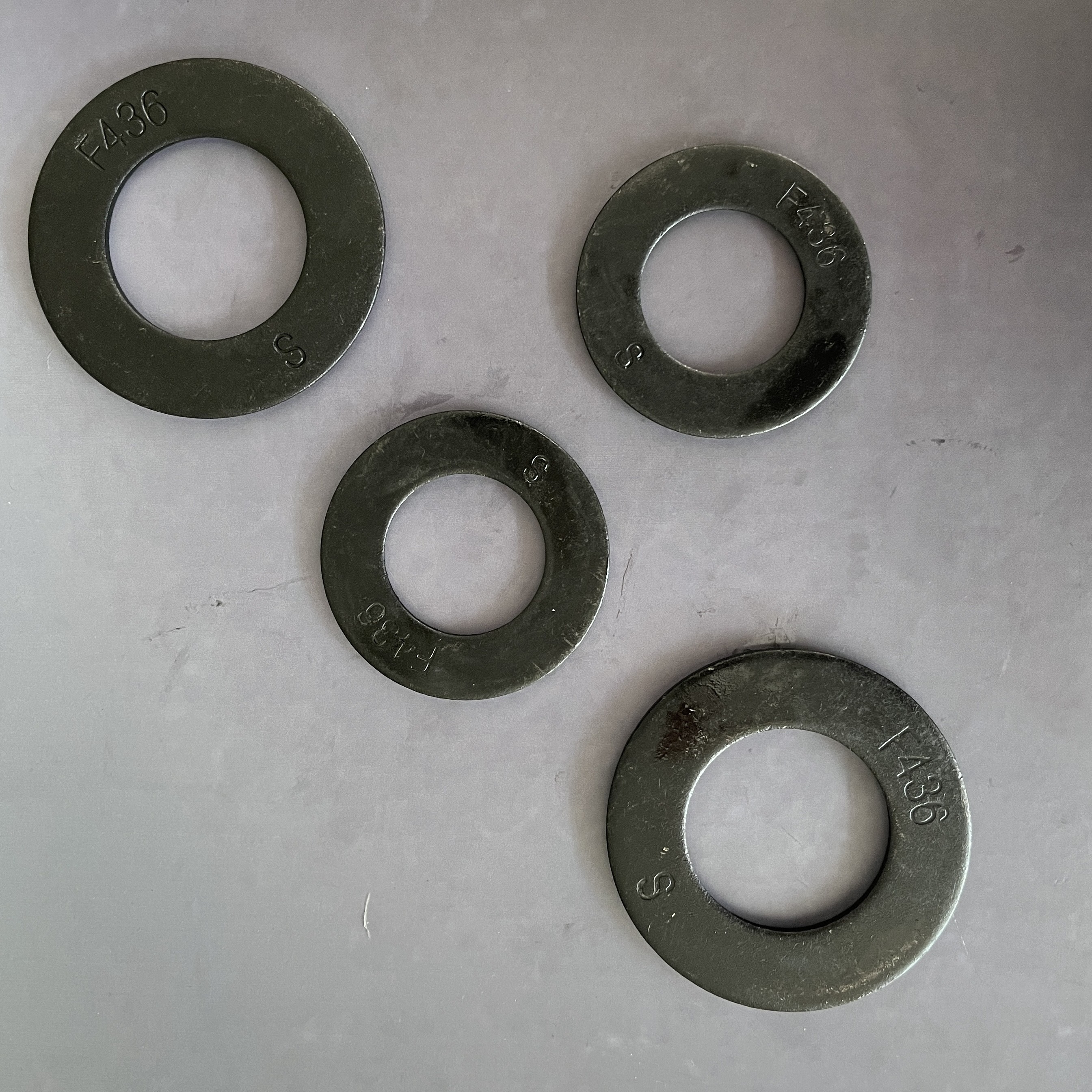

Products pictures for Flat washers
