DIN6916 Flat Steel Washer HRC35-45 M12-M36 Black Oxide For Automotive
Flat Steel Washer Description:
A DIN 6916 Flat Steel Washer is a specific type of flat washer that conforms to the standards set by the Deutsches Institut für Normung (DIN), which is the German Institute for Standardization. These washers are commonly used in structural steelwork and heavy-duty applications where high-strength connections are required.
Heavy-duty structural washers are robust washers designed for use in structural applications where high load-bearing capacity, stability, and reliability are crucial. These washers are typically thicker and larger in diameter compared to standard washers, providing increased surface area for distributing loads and reinforcing the connection between structural components.
DIN 6916 washers are typically manufactured from high-quality steel to provide exceptional strength and durability, ensuring reliable performance in construction projects.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Structural Steel Connections:
Usage: DIN 6916 washers are commonly employed in structural steel connections such as bolted joints in steel frameworks, bridges, buildings, and other structures.
Bridge Construction:
Usage: DIN 6916 washers are often utilized in the construction of bridges and overpasses where heavy loads and dynamic stresses need to be supported.
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

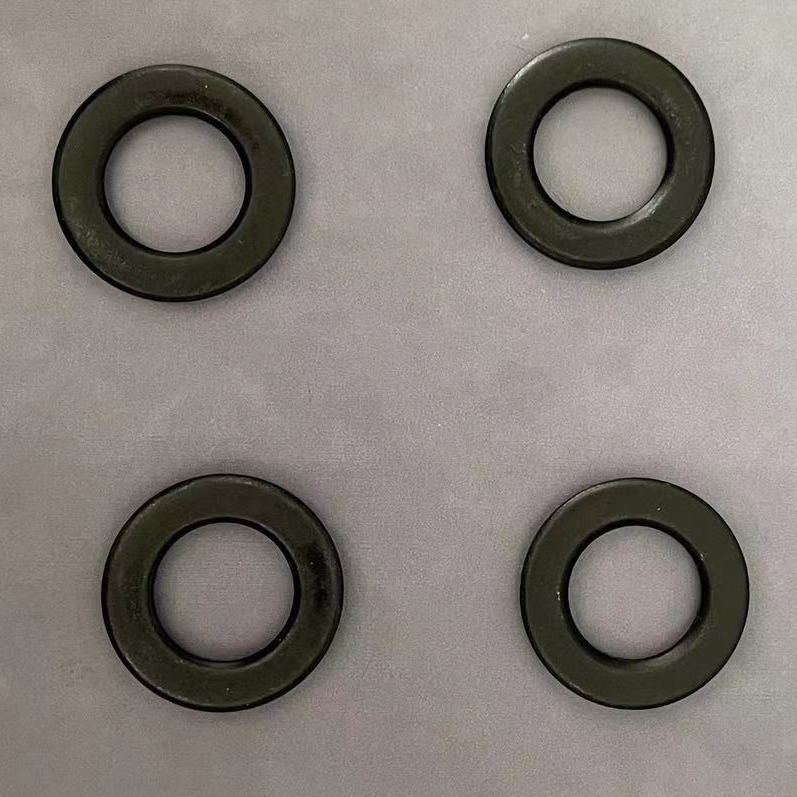

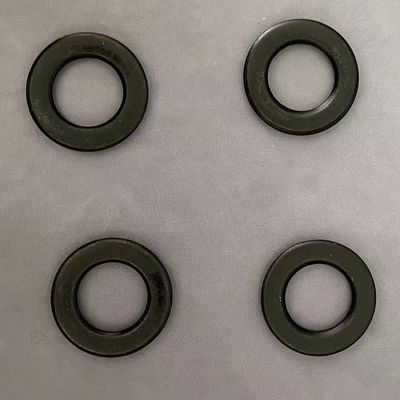

Products pictures for Flat washers
