Standard:USS
Description:
The USS washer, also known as a flat steel washer, is a commonly used washer in various industrial applications. It is designed to distribute the load of a threaded fastener, such as a bolt or a nut, and provide a smooth bearing surface. The USS washer conforms to the specifications outlined by the United States Standard (USS).
One variation of the USS washer is the version with a black oxide finish. The black oxide finish is a type of surface treatment that provides a dark, protective layer on the washer. This finish not only enhances the aesthetics of the washer but also offers some corrosion resistance.
The black oxide finish is achieved through a chemical process that converts the surface of the washer into magnetite (Fe3O4), creating a durable and attractive black coating. This coating helps protect the washer from rusting and other forms of corrosion, making it suitable for applications in environments where moisture or exposure to harsh conditions is a concern.
The USS washer with a black oxide finish is available in a size range from 1/4" to 3". This indicates that it is available in various diameters to accommodate different sizes of bolts or nuts.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diamater (max) |
Inner diamater (min) |
Outside diamater (max) |
Outside diamater (min) |
Thickness (max) |
Thickness (min) |
| 3/16" |
14.66 |
14.15 | 6.73 | 6.22 | 1.65 | 0.91 |
| 1/4" | 19.02 | 18.47 | 8.31 | 7.8 | 2.03 | 1.3 |
| 5/16" | 22.99 | 22.05 | 9.91 | 9.4 | 2.64 | 1.63 |
| 3/8" | 26.16 | 25.22 | 11.51 | 11 | 2.64 | 1.63 |
| 7/16" | 32.51 | 31.57 | 13.08 | 12.57 | 2.64 | 1.63 |
| 1/2" | 35.69 | 34.57 | 14.66 | 14.15 | 3.35 | 2.18 |
| 9/16" | 38.07 | 37.13 | 16.25 | 15.75 | 3.35 | 2.18 |
| 5/8" | 45.21 | 44.27 | 18.24 | 17.3 | 4.06 | 2.74 |
| 3/4" | 51.56 | 50.62 | 21.39 | 20.45 | 4.5 | 3.1 |
| 7/8" | 57.91 | 56.97 | 24.58 | 23.65 | 4.88 | 3.45 |
| 1" | 64.26 | 63.32 | 27.74 | 26.8 | 4.88 | 3.45 |
| 1-1/8" | 70.61 | 69.67 | 32.51 | 31.57 | 4.88 | 3.45 |
| 1-1/4" | 76.96 | 76.02 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 83.69 | 82.3 | 39.24 | 37.85 | 5.41 | 3.45 |
| 1-1/2" | 90.04 | 88.65 | 42.42 | 41.02 | 5.41 | 3.45 |
| 1-5/8" | 96.39 | 95 | 45.59 | 44.2 | 5.41 | 3.89 |
| 1-3/4” | 102.74 | 101.35 | 48.77 | 47.37 | 5.41 | 3.89 |
| 1-7/8“ | 109.09 | 107.7 | 51.94 | 50.55 | 5.41 | 3.89 |
| 2” |
115.44 |
114.05 | 55.12 | 53.72 | 5.41 | 3.89 |
| 2-1/4“ | 121.79 | 120.4 | 61.47 | 60.07 | 6.3 | 4.9 |
| 2-1/2” | 128.14 | 126.75 | 67.82 | 66.42 | 7.11 | 5.33 |
| 2-3/4“ | 135 | 133.1 | 74.68 | 72.77 | 7.87 | 5.79 |
| 3” | 141.35 | 139.45 | 81.03 | 79.12 | 8.31 | 6.32 |

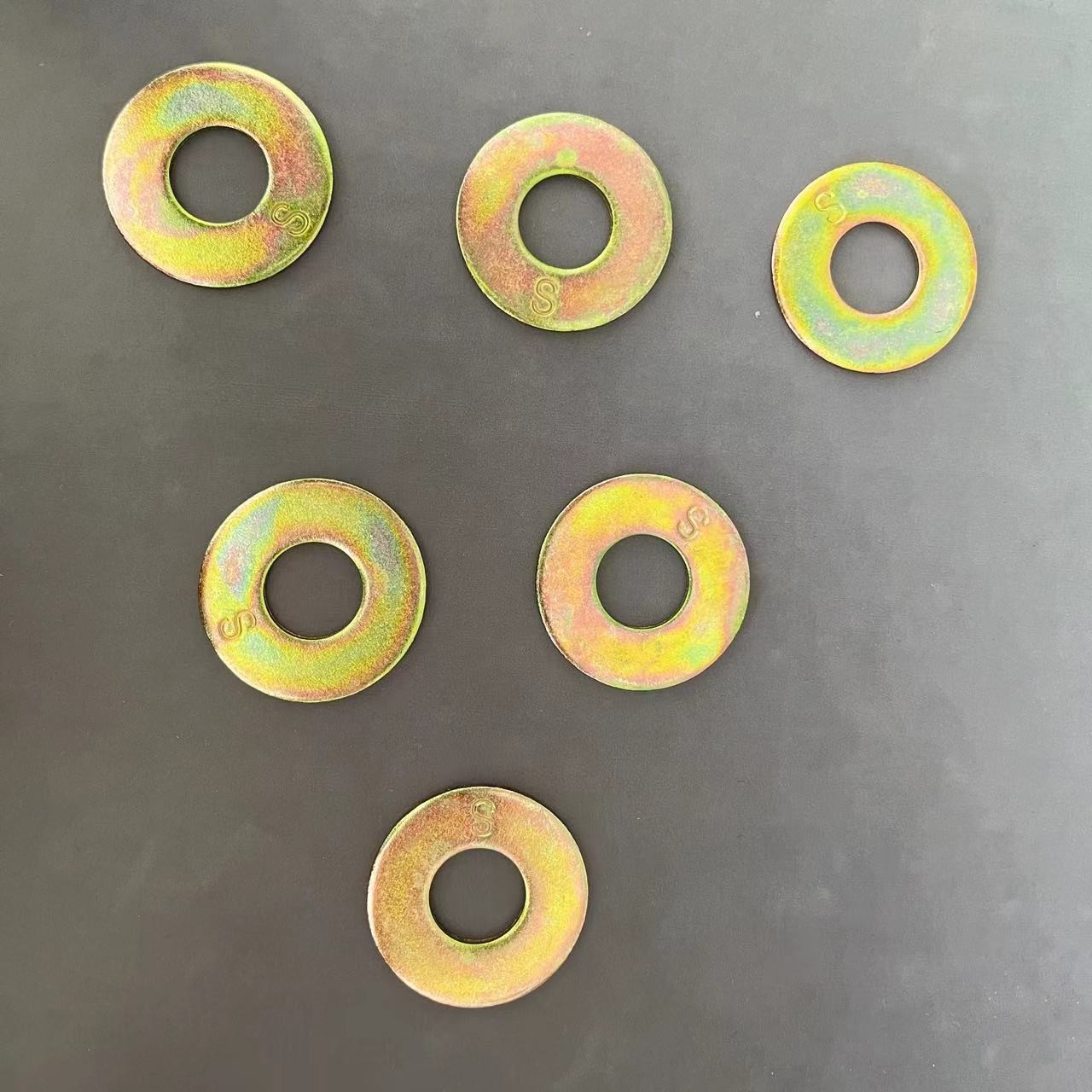

Products pictures for Flat washers
