DIN 6340 Washer/Flat Steel Washer, M6-M30, Zinc Plated

One Pallet For One Size
MOQ
DIN 6340 Washer/Flat Steel Washer, M6-M30, Zinc Plated
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN6340washer/Flat Washer
Material: S45C/40CR
Size: M6-M30
Finish: Plain/Black/ZINC/HDG/Dacromet
Standard: DIN6340
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
High Light:

DIN 6340 washer Zinc plated

,

DIN 6340 thick metal washers

,

thick metal washers Zinc plated

Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN6340
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:DIN6340

Description:

  1. DIN 6340 Washers:

    •       DIN 6340 washers are flat steel washers that conform to the DIN 6340 standard.
    •       These washers are commonly used in various applications to distribute the load and provide a smooth bearing surface.
    •       DIN 6340 washers are available in different sizes ranging from M6 to M30.
  2. Zinc Plated Finish:

    •       DIN 6340 washers can be found with a zinc-plated finish.
    •       Zinc plating provides corrosion resistance to the washers, making them suitable for use in various environments.
    •       The zinc plating also gives the washers a shiny appearance.
  3. Availability:

    •       The search results indicate that suppliers like Aramfix and various others offer DIN 6340 washers with a zinc-plated finish.
    •       These washers are available in different sizes, including M6, M8, M10, M12, M16, M20, M22, M24, and M30.
    •       The quantity and availability may vary depending on the supplier.





Material 45#/40CR
Size M6-M30
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days





Size Inner diameter(min) Inner diameter(max) Outside diameter(max) Outside diameter(min) Thinkness
M6 6.4 6.75 17 16.57 3
M8 8.4 8.76 23 22.48 4
M10 10.5 10.93 28 27.48 4
M12 13 13.43 35 34.38 5
M16 17 17.43 45 44.38 6
M20 21 21.52 50 49.38 6
M24 25 25.52 60 59.26 8
M30 31 31.62 68 67.26 10

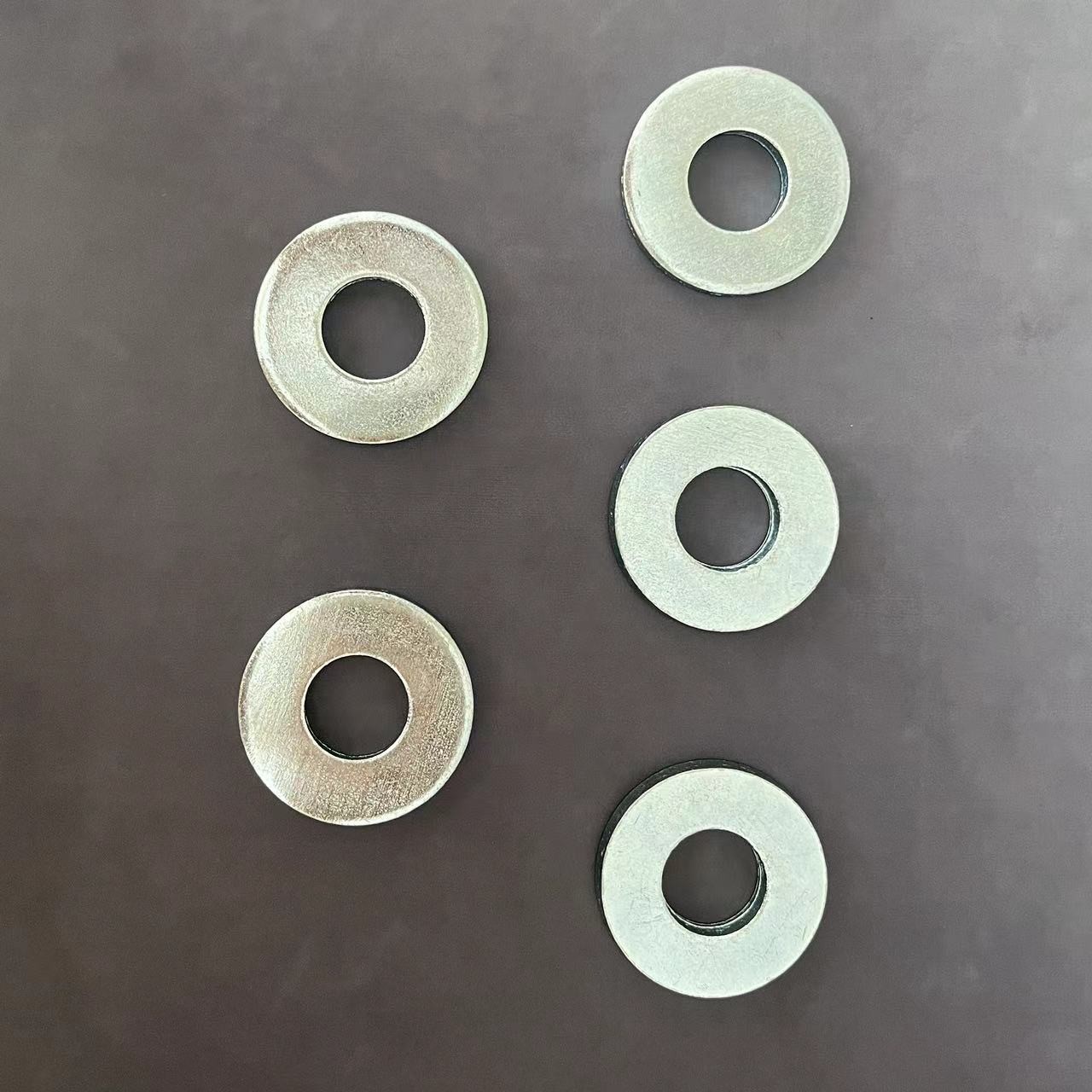

Products pictures for Flat washers

DIN 6340 Washer/Flat Steel Washer, M6-M30, Zinc Plated 0

DIN 6340 Washer/Flat Steel Washer, M6-M30, Zinc Plated 1
