DIN 6340 Washer/Flat Steel Washer, M6-M30, Finish: Plain

One Pallet For One Size
MOQ
DIN 6340 Washer/Flat Steel Washer, M6-M30, Finish: Plain
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN6340washer/Flat Washer
Material: S45C/40CR
Size: M6-M30
Finish: Plain/Black/ZINC/HDG/Dacromet
Standard: DIN6340
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
High Light:

DIN 6340 316 stainless steel flat washers

,

316 stainless steel flat washers M6

,

DIN 6340 ss plain washer

Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN6340
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:DIN6340

Description:

      DIN 6340 washers, also known as flat steel washers, are commonly used in various industries for applications that require load distribution and support under the head of a bolt or nut. In your case, you are specifically looking for DIN 6340 washers with a plain finish and a size range of M6 to M30.

      Here is some information about DIN 6340 washers with a plain finish:

Design and Functionality:

  •       DIN 6340 washers are flat, circular discs with a central hole. They are designed to distribute the load of a threaded fastener, such as a bolt or nut, over a larger surface area.
  •       The plain finish refers to the absence of any additional coating or plating on the surface of the washer.

Size Range:

  •       DIN 6340 washers with a plain finish are available in a size range of M6 to M30. This means that they can accommodate bolts or nuts with thread sizes ranging from M6 to M30.

Application:

  •       These washers are commonly used in engineering and construction applications where load distribution and support are critical.
  •       They can be used in various applications, including structural steel connections, machinery assembly, and general construction.





Material 45#/40CR
Size M6-M30
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days





Size Inner diameter(min) Inner diameter(max) Outside diameter(max) Outside diameter(min) Thinkness
M6 6.4 6.75 17 16.57 3
M8 8.4 8.76 23 22.48 4
M10 10.5 10.93 28 27.48 4
M12 13 13.43 35 34.38 5
M16 17 17.43 45 44.38 6
M20 21 21.52 50 49.38 6
M24 25 25.52 60 59.26 8
M30 31 31.62 68 67.26 10

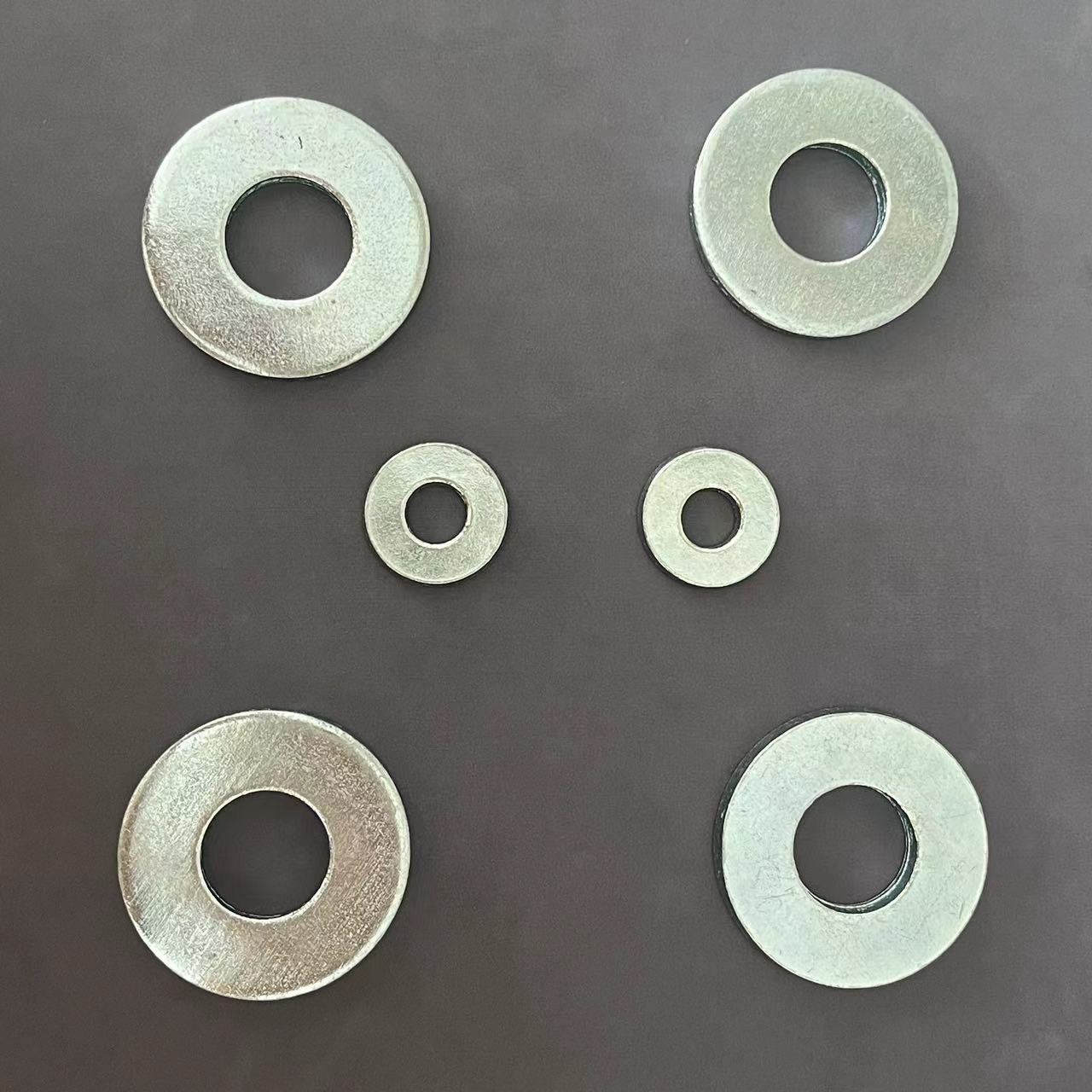

Products pictures for Flat washers

DIN 6340 Washer/Flat Steel Washer, M6-M30, Finish: Plain 0DIN 6340 Washer/Flat Steel Washer, M6-M30, Finish: Plain 1
