DIN 9021 M6-M100 Washer/Zinc Plated Washer For Bridges
Standard:DIN9021
Description:
DIN 9021 washers, also known as plain washers or flat washers, are a type of washer that conforms to the DIN 9021 standard. These washers have a flat, circular shape with a centrally located hole. They are used to provide a smooth bearing surface and distribute the load of a threaded fastener, such as a bolt or a nut.
Zinc plated washers are commonly used in a wide range of applications, but it's important to consider the specific environmental conditions and requirements of your project. In highly corrosive or harsh environments, alternative coatings or materials with higher corrosion resistance may be necessary.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |

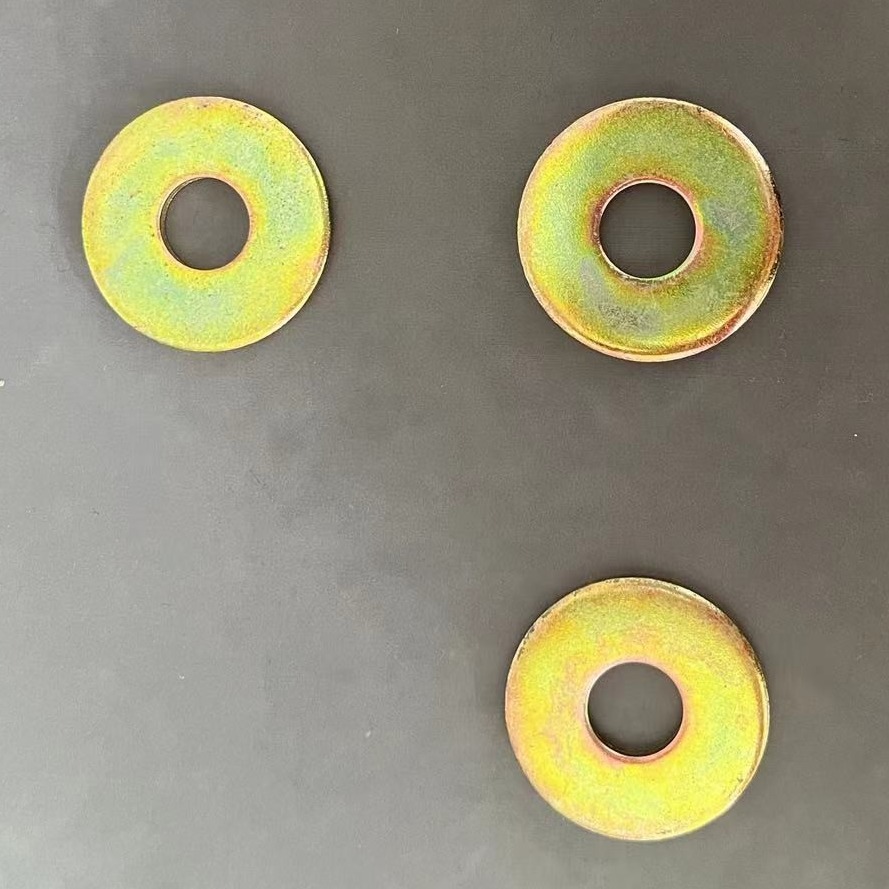

Products pictures for Flat washers
