DIN 9021 Washer/Zinc Plated Washer, M6-M100

One Pallet For One Size
MOQ
DIN 9021 Washer/Zinc Plated Washer, M6-M100
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN9021 Washer/Zinc Plated Washer
Material: S45C/40CR
Size: M6-M100
Finish: Plain/black/ZINC/HDG/Dacromet
Standard: DIN9021
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
High Light:

DIN 9021 Zinc Plated Washers S45C

,

DIN 9021 Zinc Plated Washers 40CR

,

Zinc Plated Washers M6-M100

Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN9021
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:DIN9021

Description:

      DIN 9021 washers, also known as plain washers or flat washers, are a type of washer that conforms to the DIN 9021 standard. These washers have a flat, circular shape with a centrally located hole. They are used to provide a smooth bearing surface and distribute the load of a threaded fastener, such as a bolt or a nut.

      The size range you mentioned, M6 to M100, indicates the metric thread size compatibility of the DIN 9021 washers. These washers are designed to be used with bolts or studs that have metric thread sizes within this range.

      The "zinc plated" specification indicates that the DIN 9021 washers are coated with a layer of zinc to provide corrosion resistance. Zinc plating is a common surface treatment for washers and other fasteners. It creates a protective barrier that helps prevent the underlying steel from coming into direct contact with moisture or corrosive substances, reducing the risk of rust and corrosion.

      When specified as "DIN 9021 Washer/Zinc Plated Washer, M6-M100," it means that DIN 9021 washers are available with a zinc plated finish in the M6 to M100 size range. This combination provides the benefits of both the flat washer design specified by DIN 9021 and the corrosion resistance of the zinc plating.

      Zinc plated washers are commonly used in a wide range of applications, but it's important to consider the specific environmental conditions and requirements of your project. In highly corrosive or harsh environments, alternative coatings or materials with higher corrosion resistance may be necessary.







Material 45#/40CR
Size M6-M100
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days





Size

Inner

diameter(min)

Inner

diameter(max)

Outside

diameter(max)

Outside

diameter(min)

Thickness

(max)

Nominal

size

Thickness

(min)

2.7 2.7 2.84 8 7.64 0.9 0.8

0.7

3.2 3.2 3.38 9 8.64 0.9 0.8 0.7
3.7 3.7 3.88 11 10.57 0.9 0.8 0.7
4.3 4.3 4.48 12 11.57 1.1 1 0.9
5.3 5.3 5.48 15 14.57 1.4 1.2 1
6.4 6.4 6.62 18 17.57 1.8 1.6 1.4
7.4 7.4 7.62 22 21.48 2.2 2 1.8
8.4 8.4 8.62 24 23.48 2.2 2 1.8
10.5 10.5 10.77 30 29.48 2.7 2.5 2.3
13 13 13.27 37 36.38 3.3 3 2.7
15 15 15.27 44 43.38 3.3 3 2.7
17 17 17.27 50 49.38 3.3 3 2.7
20 20 20.52 56 54.1 4.6 4 3.4
22 22 22.52 60 58.1 4.6 4 3.4
26 26 26.84 72 70.1 6 5 4
33 33 34 92 89.8 7 6 5
39 39 40 110 107.8 9.2 8 6.8

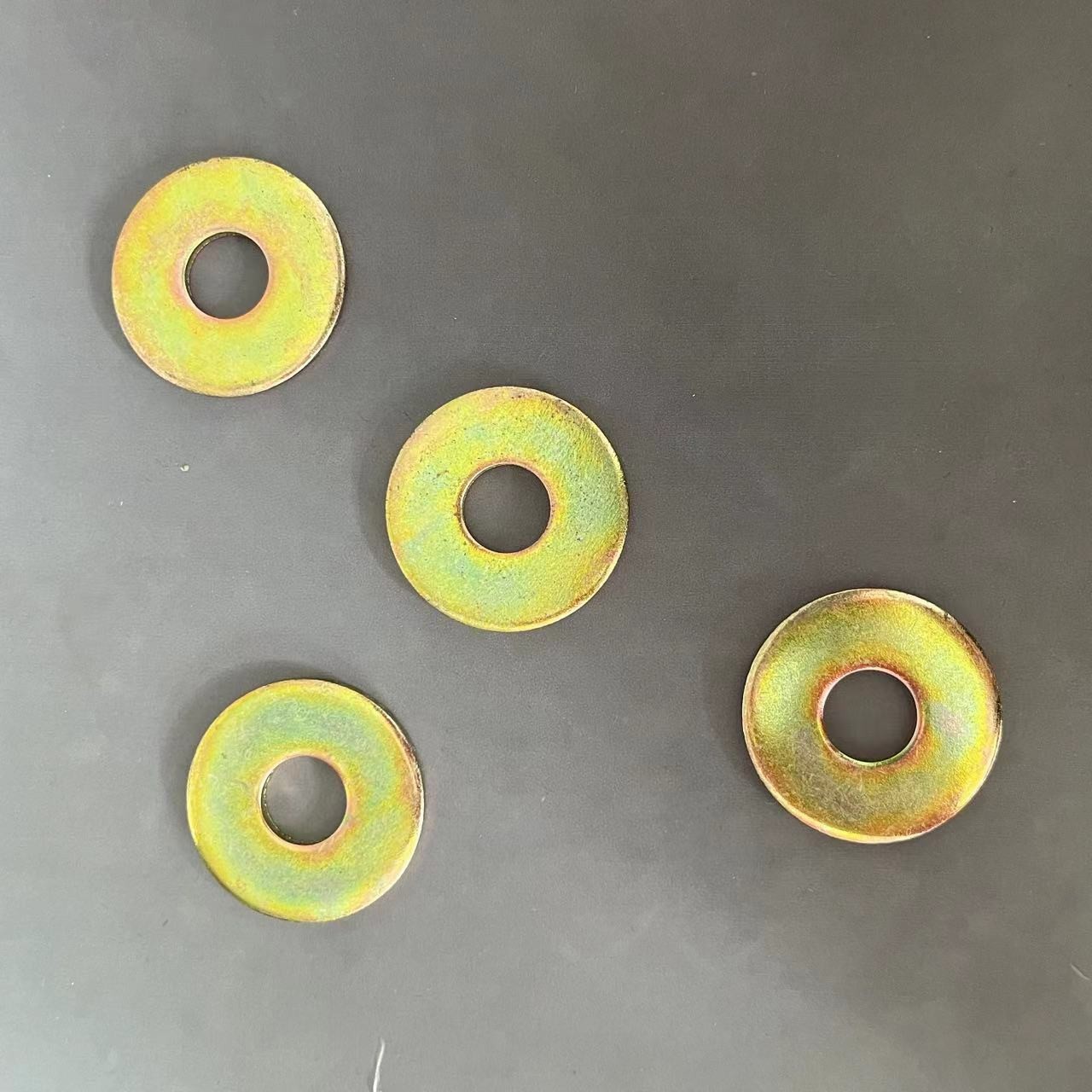

Products pictures for Flat washers







DIN 9021 Washer/Zinc Plated Washer, M6-M100 0DIN 9021 Washer/Zinc Plated Washer, M6-M100 1DIN 9021 Washer/Zinc Plated Washer, M6-M100 2
