Standard:F436M
Description:
F436M washers, also known as hardened steel washers, are a specific type of washer that conforms to the ASTM F436M standard. These washers are commonly used in structural applications where high-strength fasteners are used. They are made from hardened steel to provide excellent durability and load-bearing capability.
The size range you mentioned, M12 to M100, indicates the metric thread size compatibility of the F436M washers. These washers are designed to be used with bolts or studs that have metric thread sizes within this range.
The "zinc plated" specification indicates that the F436M washers are coated with a layer of zinc to provide corrosion resistance. Zinc plating is a common surface treatment for washers and other fasteners. It creates a protective barrier that helps prevent the underlying steel from coming into direct contact with moisture or corrosive substances, reducing the risk of rust and corrosion.
When specified as "F436M Washer/Zinc Plated Washer, M12-M100," it means that F436M washers are available with a zinc plated finish in the M12 to M100 size range. This combination provides the benefits of both the hardened steel construction of F436M washers and the corrosion resistance of the zinc plating.
It's important to note that while zinc plating offers good corrosion resistance, it may not be suitable for highly corrosive or harsh environments. In such cases, alternative coatings or materials with higher corrosion resistance may be required.
| Material | 45#/40CR |
| Size | M12-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter(max) | Inner diameter(min) | Outside diameter(max) | Outside diameter(min) |
Thickness (max) |
Thickness (min) |
|---|---|---|---|---|---|---|
| M12 | 14.4 | 14.0 | 27.0 | 25.7 | 4.6 | 3.1 |
| M14 | 16.4 | 16.0 | 30.0 | 28.7 | 4.6 | 3.1 |
| M16 | 18.4 | 18.0 | 34.0 | 32.4 | 4.6 | 3.1 |
| M20 | 22.5 | 22.0 | 42.0 | 40.4 | 4.6 | 3.1 |
| M22 | 24.5 | 24.0 | 44.0 | 42.4 | 4.6 | 3.4 |
| M24 | 26.5 | 26.0 | 50.5 | 48.4 | 4.6 | 3.4 |
| M27 | 30.5 | 30.0 | 56.0 | 54.1 | 4.6 | 3.4 |
| M30 | 33.6 | 33.0 | 60.0 | 58.1 | 4.6 | 3.4 |
| M36 | 39.6 | 39.0 | 72.0 | 70.1 | 4.6 | 3.4 |
| M42 | 45.6 | 45.0 | 84.0 | 81.8 | 7.2 | 4.6 |
| M48 | 52.7 | 52.0 | 95.0 | 92.8 | 7.2 | 4.6 |
| M56 | 62.7 | 62.0 | 107.0 | 104.8 | 8.7 | 6.1 |
| M64 | 70.7 | 70.0 | 118.0 | 115.8 | 8.7 | 6.1 |
| M72 | 78.7 | 78.0 | 130.0 | 127.5 | 8.7 | 6.1 |
| M80 | 86.9 | 86.0 | 142.0 | 139.5 | 8.7 | 6.1 |
| M90 | 96.9 | 96.0 | 159.0 | 156.5 | 8.7 | 6.1 |
| M100 | 107.9 | 107.0 | 176.0 | 173.5 | 8.7 | 6.1 |

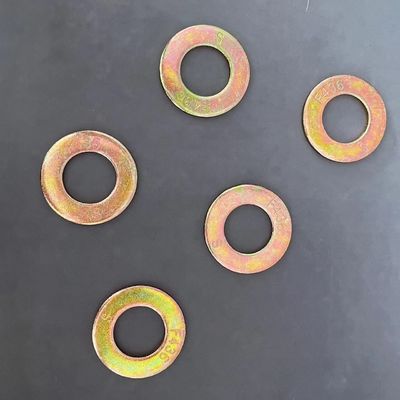

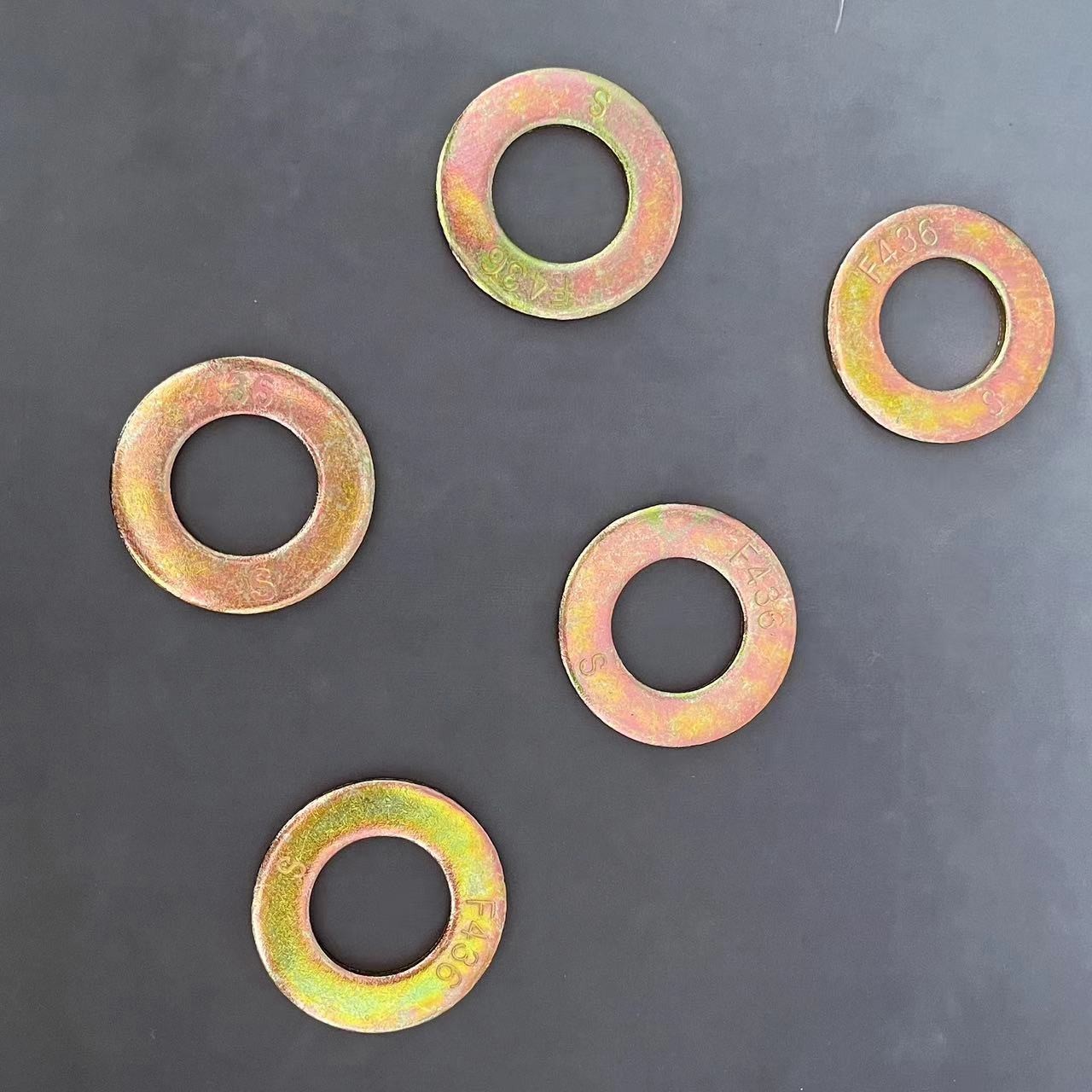

Products pictures for Flat washers
