DIN6916 Washer/Zinc Plated Washer M12-M36 For General Manufacturing
Standard:DIN6916
Description:
A DIN 6916 Heavy Washer is a specific type of washer that conforms to the DIN 6916 standard set by the Deutsches Institut für Normung (DIN), which is the German Institute for Standardization. These heavy washers are designed for use in structural steelwork and other applications where high-strength connections are required.
A zinc-plated washer is a type of washer that has been coated with a layer of zinc through a process known as zinc plating or galvanization. This coating of zinc provides several benefits to the washer:
Enhanced Lubricity:
Zinc-plated washers often have improved lubricity, making them easier to install and reducing friction during tightening.
Compatibility:
Zinc plating is compatible with a wide range of materials and can be used in various applications across industries such as automotive, construction, and general manufacturing.
Cost-Effective Corrosion Protection:
Zinc plating provides an economical way to protect the washer from corrosion compared to more expensive coating methods.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

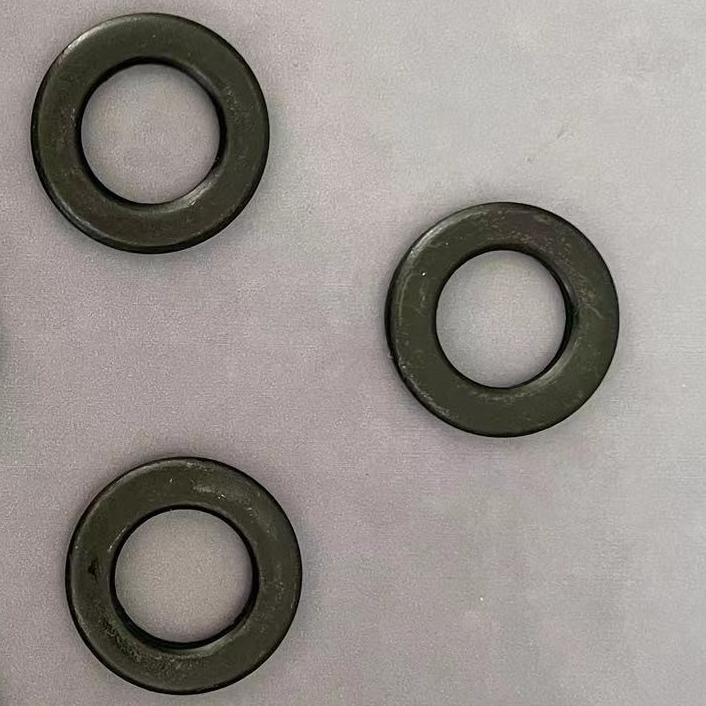

Products pictures for Flat washers
