Zinc Plated/HDG DIN6916 Hardened Steel Washer M12-M36 For Heavy Machinery
Standard:DIN6916
Description:
The DIN 6916 Hardened Steel Washer is a robust flat washer designed for high-load applications, conforming to the German Institute for Standardization (DIN) standards.
The DIN 6916 Hardened Steel Washer is essential for applications requiring high strength, durability, and reliable performance, making it a critical component in many industrial and engineering fields.
· Standard Compliance: Conforms to the DIN 6916 standard, ensuring consistent quality and specifications.
· Material: Made from hardened steel, which enhances strength and resistance to deformation under load.
· Design: Flat and circular, providing a large surface area for effective load distribution.
· Thickness: Typically thicker than standard washers, contributing to its ability to withstand significant stress.
· Heavy Machinery: Commonly used in construction and industrial machinery where high tensile strength is required.
· Structural Engineering: Suitable for use in structural applications, ensuring secure fastening of components.
· Automotive: Often found in automotive applications where durability and reliability are critical.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

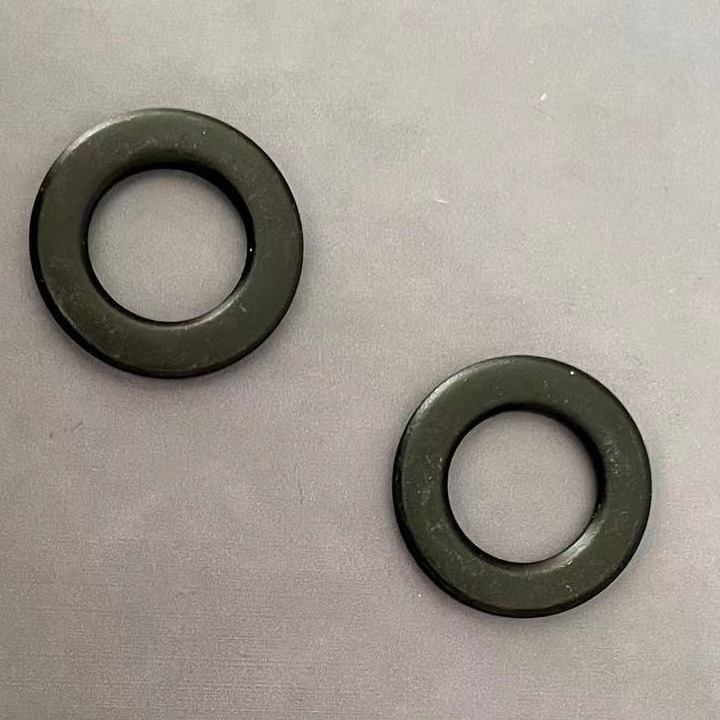

Products pictures for Flat washers
