F436 High Tensile Washer, 1/4" - 4", Black Oxide For Infrastructure Projects
F436 High Tensile Washer Description :
The F436 High Tensile Washer is a specialized washer designed to withstand high tensile forces and provide reliable load distribution in structural and industrial applications.
F436 High Tensile Washers may feature coatings such as zinc plating or other corrosion-resistant finishes to protect against rust and corrosion, especially in outdoor or harsh environments.
High-Strength Steel:
F436 High Tensile Washers are typically made from high-strength steel to ensure durability and resistance to deformation under high loads.
Hardened Steel:
These washers may undergo a hardening process to enhance their strength and toughness, making them suitable for applications requiring high tensile strength.
| Material | 45#/40CR |
| Size | 1/4"-4" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| size | Inner diameter(min) | Inner diameter(max) |
Outside diameter (min) |
Outside diameter (max) |
Thickness (max) |
nominal size |
Thickness (min) |
|---|---|---|---|---|---|---|---|
|
1/4" |
7.137 |
7.925 | 15.087 | 15.875 | 2 | 1.65 | 1.2954 |
| 5/16" | 8.737 | 9.525 | 16.662 | 17.45 | 2 | 1.65 | 1.2954 |
| 3/8" | 10.312 |
11.1 |
19.837 | 20.65 | 2 | 1.65 | 1.2954 |
| 7/16" |
11.912 |
12.7 | 22.63 | 23.41 | 2 | 1.65 | 1.2954 |
| 1/2" | 13.487 | 14.3 | 26.187 | 27.787 | 4.95 | 3.47 | 2.4638 |
| 9/16" | 15.087 | 15.9 | 29.311 | 30.91 | 4.95 | 3.47 | 2.4638 |
| 5/8" | 17.45 | 18.26 | 32.537 | 34.137 | 4.95 | 3.8 | 3.0988 |
| 3/4" | 20.65 | 21.43 | 37 | 38.1 | 4.95 | 3.8 | 3.0988 |
| 7/8" | 23.8 | 24.587 | 43.662 | 45.237 | 4.95 | 3.97 | 3.4544 |
| 1" | 28.575 | 29.36 | 50.012 | 51.587 | 4.95 | 3.97 | 3.4544 |
| 1-1/8" | 31.75 | 32.537 | 56.362 | 57.937 | 4.95 | 3.97 | 3.4544 |
| 1-1/4" | 34.925 | 35.712 | 62.712 | 64.287 | 4.95 | 3.97 | 3.4544 |
| 1-3/8" | 38.10 | 39.7 | 68.25 | 70.63 | 4.95 | 3.97 | 3.4544 |
| 1-1/2" | 41.275 | 42.062 | 75.412 | 76.987 | 4.95 | 3.97 | 3.4544 |
| 1-5/8" | 44.45 | 46.01 | 80.99 | 84.11 | 7.1 | 6 | 4.53 |
| 1-3/4" | 47.63 | 49.23 | 84.12 | 87.29 | 7.1 | 6 | 4.53 |
| 1-7/8" | 50.80 | 52.36 | 87.34 | 90.46 | 7.1 | 6 | 4.53 |
| 2" | 53.98 | 55.58 | 93.65 | 96.81 | 7.1 | 6 | 4.53 |
| 2-1/4" | 60.33 | 61.93 | 100 | 103.16 | 8.62 | 7.3 | 6.1 |
| 2-1/2" | 66.68 | 68.28 | 112.7 | 115.86 | 8.62 | 7.3 | 6.1 |
| 2-3/4" | 73.03 | 74.63 | 125.4 | 128.56 | 8.62 | 7.3 | 6.1 |
| 3" | 79.38 | 80.98 | 138.1 | 142.82 | 8.62 | 7.3 | 6.1 |
| 3-1/4" | 85.73 | 88.9 | 149.23 | 155.52 | 8.62 | 7.3 | 6.1 |
| 3-1/2" | 92.08 | 95.25 | 161.93 | 168.22 | 8.62 | 7.3 | 6.1 |
| 3-3/4" | 98.43 | 101.6 | 174.63 | 180.92 | 8.62 | 7.3 | 6.1 |
| 4" | 104.78 | 107.95 | 187.33 | 193.62 | 8.62 | 7.3 | 6.1 |

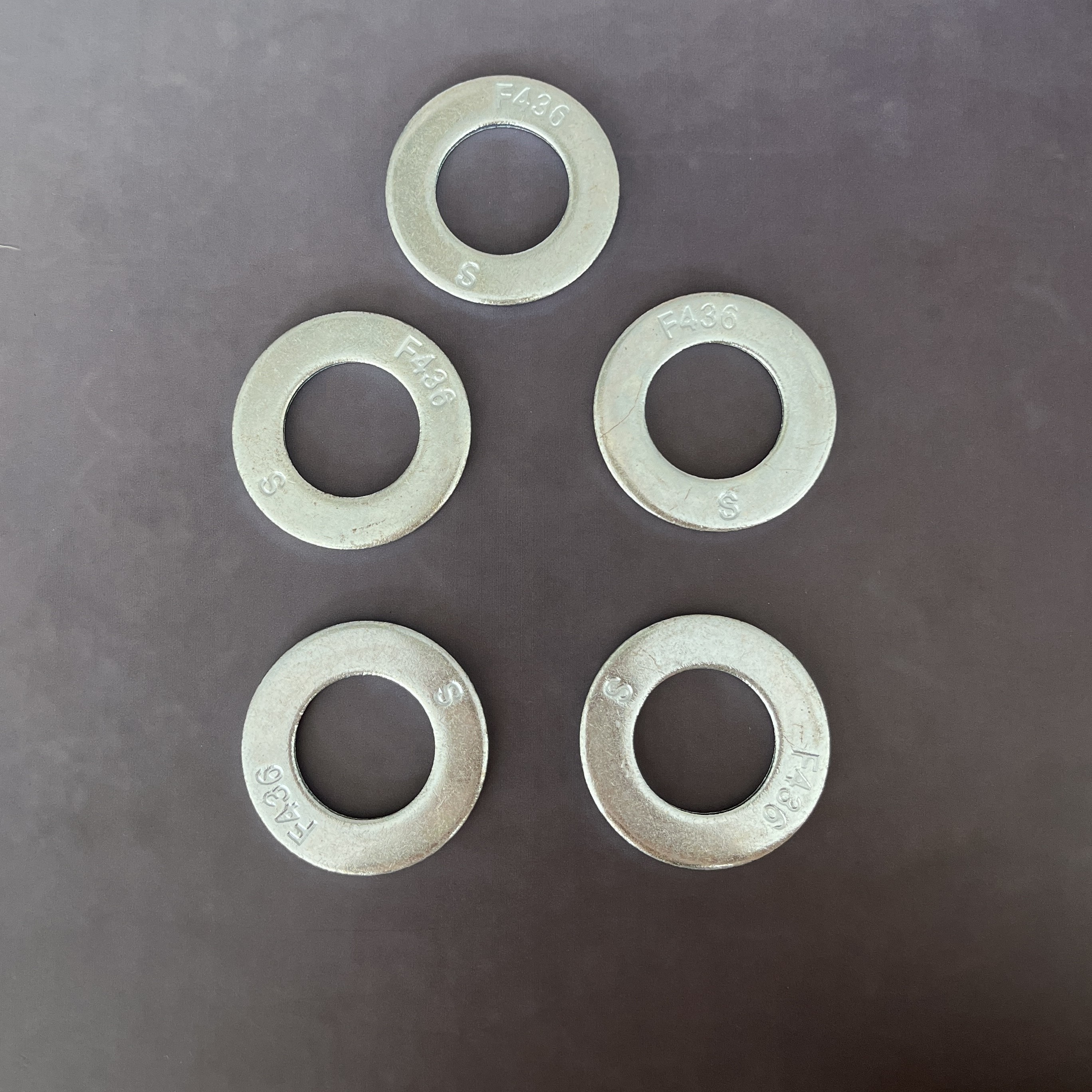

Products pictures for Flat washers
