Standard:USS
Description:
USS washers, also known as high tensile washers, are commonly used in various applications to distribute the load of a threaded fastener, such as a bolt or screw, and provide a smooth surface for the nut or bolt head to bear against. USS stands for "United States Standard" and refers to the dimensions of the washers according to American standards.
The size range of USS washers is typically specified in fractional inches, such as 1/4" to 3". This indicates that USS washers can accommodate fasteners with diameters ranging from 1/4" to 3".
USS washers are available with different coating options, including plain and Dacromet.
Plain USS washers do not have any surface coating or treatment. They are made from bare steel and provide basic protection against corrosion. Plain washers are typically used in applications where corrosion resistance is not a significant concern or where additional coating or protection measures will be applied.
Dacromet is a specialized coating option for USS washers. Dacromet is a non-electrolytic, water-based coating that provides excellent corrosion resistance. It forms a thin, uniform coating that offers a high level of protection against rust and other forms of corrosion. Dacromet coatings are designed to withstand harsh environmental conditions, including exposure to moisture, salt spray, and chemicals. Additionally, Dacromet coatings provide good adhesion and act as a self-lubricant, reducing friction during assembly.
When choosing between plain and Dacromet USS washers, consider the specific environmental conditions in which they will be used. If the application involves exposure to moisture, humidity, or corrosive substances, Dacromet-coated USS washers would provide superior corrosion protection. For applications where corrosion resistance is not a significant concern or where additional protective measures will be applied, plain USS washers may be suitable.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diamater (max) |
Inner diamater (min) |
Outside diamater (max) |
Outside diamater (min) |
Thickness (max) |
Thickness (min) |
| 3/16“ |
14.66 |
14.15 | 6.73 | 6.22 | 1.65 | 0.91 |
| 1/4” | 19.02 | 18.47 | 8.31 | 7.8 | 2.03 | 1.3 |
| 5/16“ | 22.99 | 22.05 | 9.91 | 9.4 | 2.64 | 1.63 |
| 3/8” | 26.16 | 25.22 | 11.51 | 11 | 2.64 | 1.63 |
| 7/16“ | 32.51 | 31.57 | 13.08 | 12.57 | 2.64 | 1.63 |
| 1/2” | 35.69 | 34.57 | 14.66 | 14.15 | 3.35 | 2.18 |
| 9/16“ | 38.07 | 37.13 | 16.25 | 15.75 | 3.35 | 2.18 |
| 5/8” | 45.21 | 44.27 | 18.24 | 17.3 | 4.06 | 2.74 |
| 3/4“ | 51.56 | 50.62 | 21.39 | 20.45 | 4.5 | 3.1 |
| 7/8” | 57.91 | 56.97 | 24.58 | 23.65 | 4.88 | 3.45 |
| 1“ | 64.26 | 63.32 | 27.74 | 26.8 | 4.88 | 3.45 |
| 1-1/8” | 70.61 | 69.67 | 32.51 | 31.57 | 4.88 | 3.45 |
| 1-1/4“ | 76.96 | 76.02 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 83.69 | 82.3 | 39.24 | 37.85 | 5.41 | 3.45 |
| 1-1/2" | 90.04 | 88.65 | 42.42 | 41.02 | 5.41 | 3.45 |
| 1-5/8" | 96.39 | 95 | 45.59 | 44.2 | 5.41 | 3.89 |
| 1-3/4" | 102.74 | 101.35 | 48.77 | 47.37 | 5.41 | 3.89 |
| 1-7/8" | 109.09 | 107.7 | 51.94 | 50.55 | 5.41 | 3.89 |
| 2" |
115.44 |
114.05 | 55.12 | 53.72 | 5.41 | 3.89 |
| 2-1/4" | 121.79 | 120.4 | 61.47 | 60.07 | 6.3 | 4.9 |
| 2-1/2" | 128.14 | 126.75 | 67.82 | 66.42 | 7.11 | 5.33 |
| 2-3/4" | 135 | 133.1 | 74.68 | 72.77 | 7.87 | 5.79 |
| 3" | 141.35 | 139.45 | 81.03 | 79.12 | 8.31 | 6.32 |

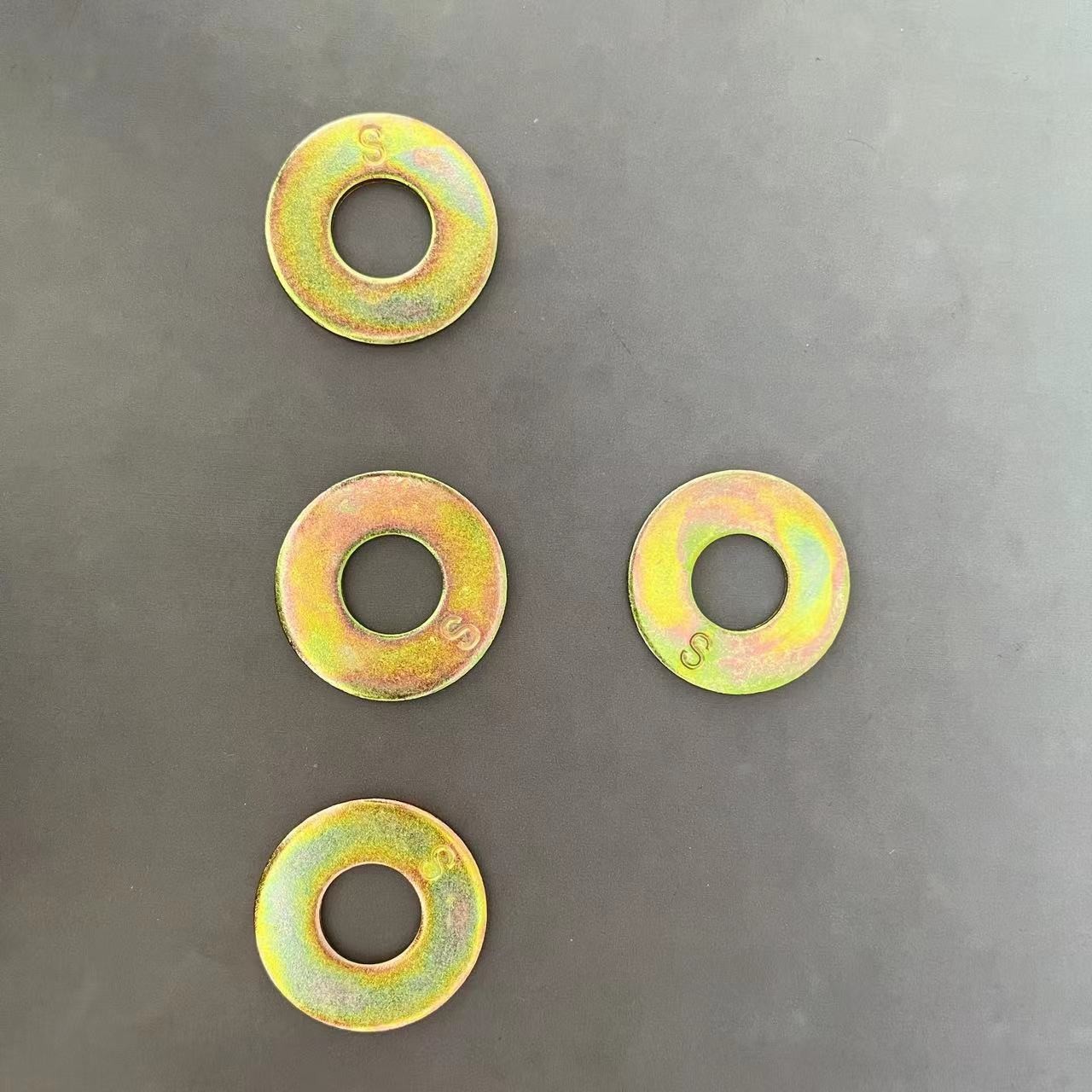

Products pictures for Flat washers
