DIN6916 Heavy Washer M12-M36 Zinc Plated/HDG For Steel Fabrication
Standard:DIN6916
Description:
A DIN 6916 Heavy Washer is a specific type of washer that conforms to the DIN 6916 standard set by the Deutsches Institut für Normung (DIN), which is the German Institute for Standardization. These heavy washers are designed for use in structural steelwork and other applications where high-strength connections are required.
Material: These washers are typically made from steel or other high-strength materials to withstand heavy loads and provide reliable support in structural applications.
Thickness: DIN 6916 Heavy Washers are thicker than standard washers, providing increased strength and load-bearing capacity.
Size: These washers have a larger diameter compared to regular washers, offering a greater surface area for load distribution and reinforcement of connections.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

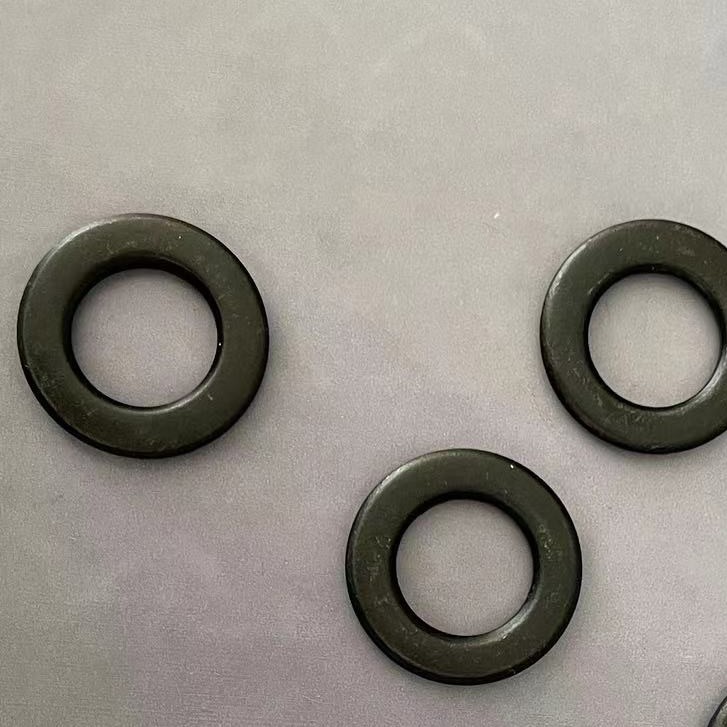

Products pictures for Flat washers
