DIN6916 High Tensile Washer M12-M36 Zinc Plated/HDG
Standard:DIN6916
Description:
A high tensile washer is a type of washer designed to be used with high tensile strength bolts, screws, or studs in applications where strong and secure fastenings are required. These washers are typically made from materials such as hardened steel or stainless steel to withstand high levels of tension and prevent bolt or screw heads from pulling through the material under heavy loads.
Load Distribution:
These washers are designed to distribute the load over a larger area, reducing the risk of damage to the material being fastened and providing stability to the connection.
Corrosion Resistance:
Many high tensile washers are coated or made from corrosion-resistant materials to ensure long-term performance in various environments.
Applications:
They are commonly used in industries such as construction, automotive, aerospace, and machinery where high-strength fastenings are necessary.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

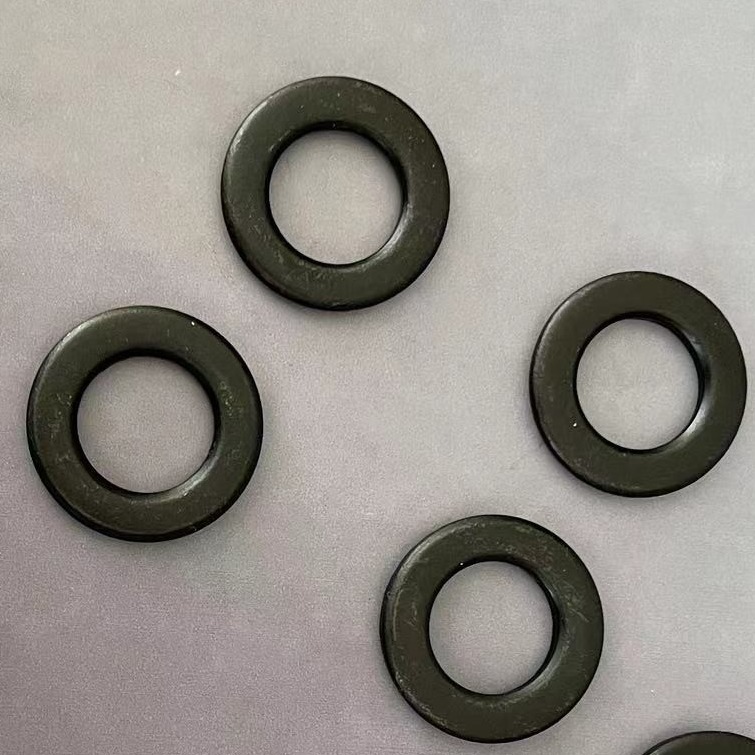

Products pictures for Flat washers
