EN14399-6 Zinc plated/HDG Washer/ Hardened Steel Washer M12-M36
Description:
The EN 14399-6 washer, also known as a hardened steel washer, is a type of washer that conforms to the EN 14399-6 standard. It is commonly used in structural steel applications where high-strength fasteners are employed.
EN 14399-6 hardened steel washers are essential components in applications where high load-bearing capacity, durability, and reliability are crucial. Their hardened steel construction, specific design features, and adherence to European standards make them ideal for use in critical structural connections that require superior strength and performance.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Load Distribution:
High Load-Bearing Capacity: The hardened steel construction of EN 14399-6 washers provides increased strength and load-bearing capacity, allowing them to withstand heavy loads and prevent material deformation in critical structural applications.
Corrosion Resistance:
To enhance durability and longevity, EN 14399-6 hardened steel washers may be treated with coatings such as zinc plating or other corrosion-resistant finishes, protecting them from rust and corrosion in challenging environments.
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |
It's important to note that the EN 14399-6 standard ensures that the washer meets specific requirements for dimensions, material properties, and performance. This standard is commonly used in Europe for structural steel applications.

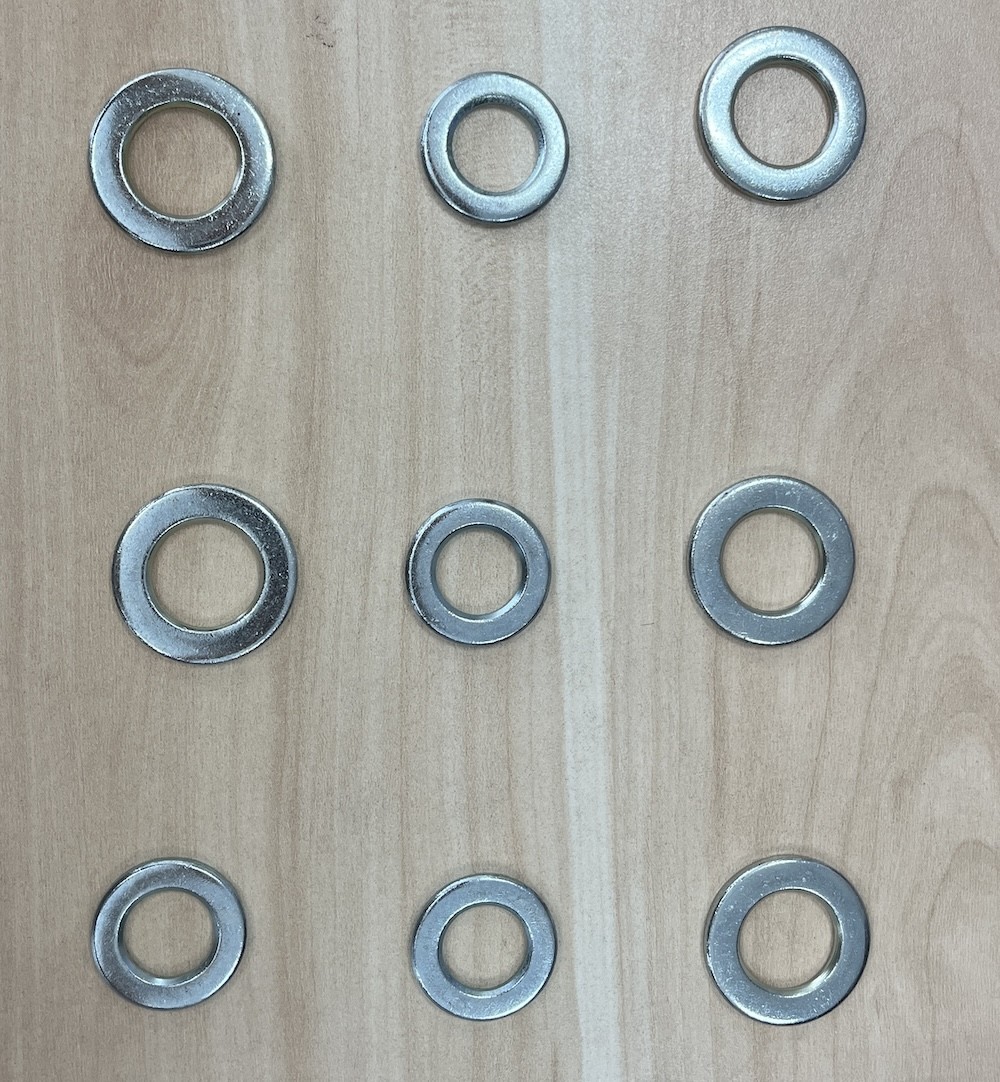

Products pictures for Flat washers
