DIN9021 Heavy Plain Dacromet Washer M6-M100 for Construction
Description of DIN 9021 Flat Steel Washer:
DIN 9021 flat steel washers are standardized flat washers that adhere to the specifications outlined by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. These washers are designed to provide a uniform bearing surface under the head of a bolt or nut, distributing the load over a wider area and preventing damage to the material being fastened.
DIN 9021 washers are widely used in construction, automotive, and various other industries where secure fastening and load distribution are essential. The choice between plain and Dacromet finishes depends on the specific application requirements, including the level of corrosion resistance needed.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Applications:
Structural Engineering:
DIN 9021 structural steel washers are commonly used in structural engineering applications such as steel frame construction, bridge building, and other projects where the integrity and stability of connections are critical.
Heavy Machinery:
They are also utilized in heavy machinery assembly and other industrial applications where reliable load distribution is essential.
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |
Heavy Washer Features:
Uniform Load Distribution: The flat design of DIN 9021 washers ensures that the load from the fastener is evenly distributed, reducing the risk of localized stress and potential failure.
Standard Compliance: Manufactured according to DIN 9021 specifications, these washers meet the required standards for quality and performance.

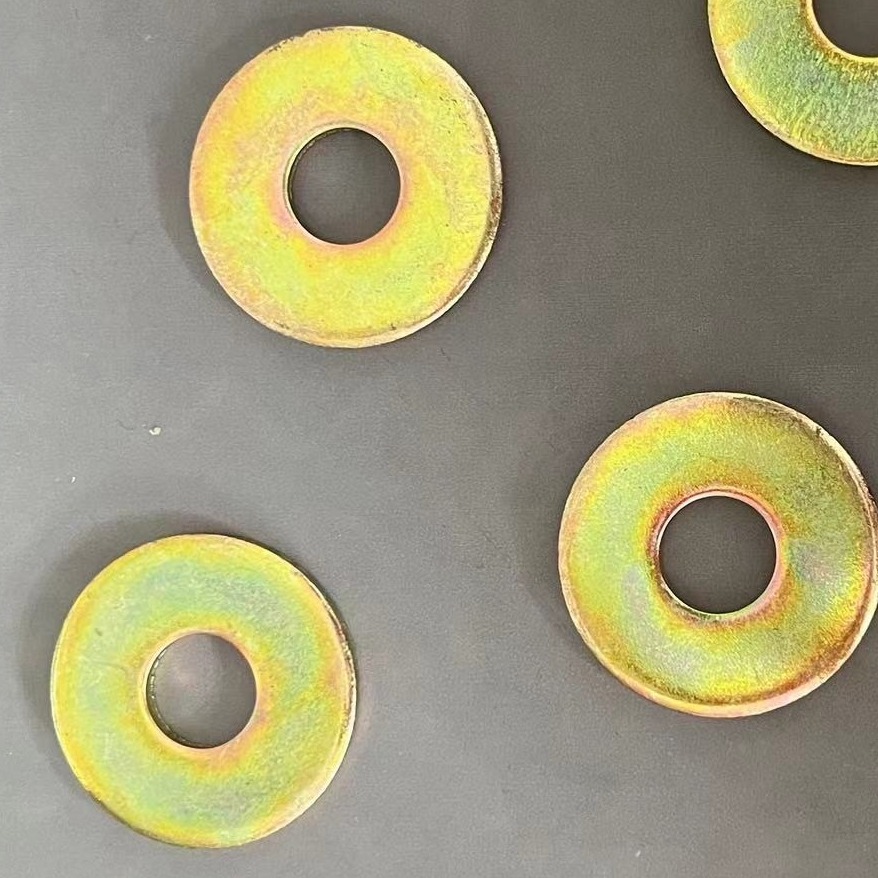

Products pictures for Flat washers
