DIN9021 Washer/Flat Steel Washer, M6-M100, Plain/Dacromet
Description of DIN 9021 Flat Steel Washer:
DIN 9021 flat steel washers are standardized flat washers that adhere to the specifications outlined by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. These washers are designed to provide a uniform bearing surface under the head of a bolt or nut, distributing the load over a wider area and preventing damage to the material being fastened.
Material:
High-Quality Steel: DIN 9021 flat steel washers are typically manufactured from high-quality steel, offering strength and durability suitable for various applications.
Design:
Flat Circular Shape: These washers feature a flat, circular design with a centrally located hole, providing a smooth and even surface for distributing the load from the fastener.
Standardized Dimensions: DIN 9021 washers conform to specific dimensions outlined in the standard to ensure compatibility with corresponding bolts and nuts.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |

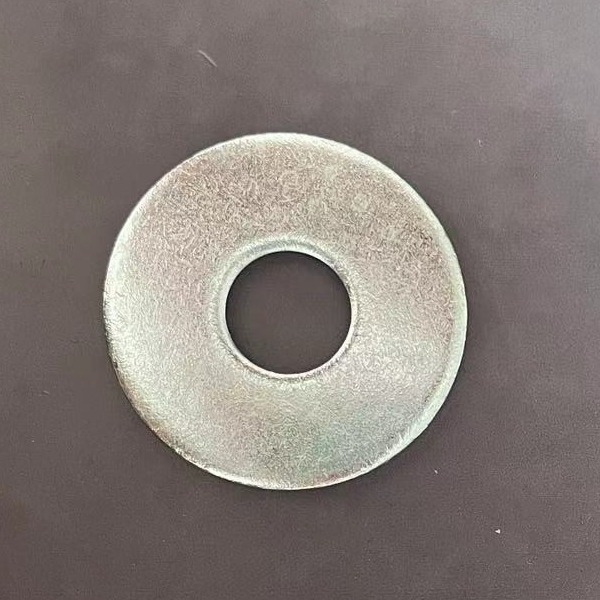

Products pictures for Flat washers
