DIN6916 Flat Steel Washer Plain/ZINC/HDG For Marine Construction
Flat Steel Washer Description:
DIN 6916 washers, known for their heavy-duty design and high load-bearing capacity, find extensive application in various construction projects where structural integrity, stability, and reliability are critical.
DIN 6916 washers are commonly employed in structural steel connections such as bolted joints in steel frameworks, bridges, buildings, and other structures.
DIN 6916 washers are essential components in construction applications where heavy loads, structural stability, and reliability are paramount. Their specific design features and adherence to DIN standards make them ideal for ensuring the integrity and safety of critical connections in a wide range of construction projects.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Offshore and Marine Construction:
Usage: DIN 6916 washers are used in offshore platforms, marine structures, and coastal construction projects that require robust fastening solutions.
Purpose: These washers offer corrosion resistance and high load-bearing capacity, making them suitable for applications exposed to harsh marine environments and weather conditions.
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

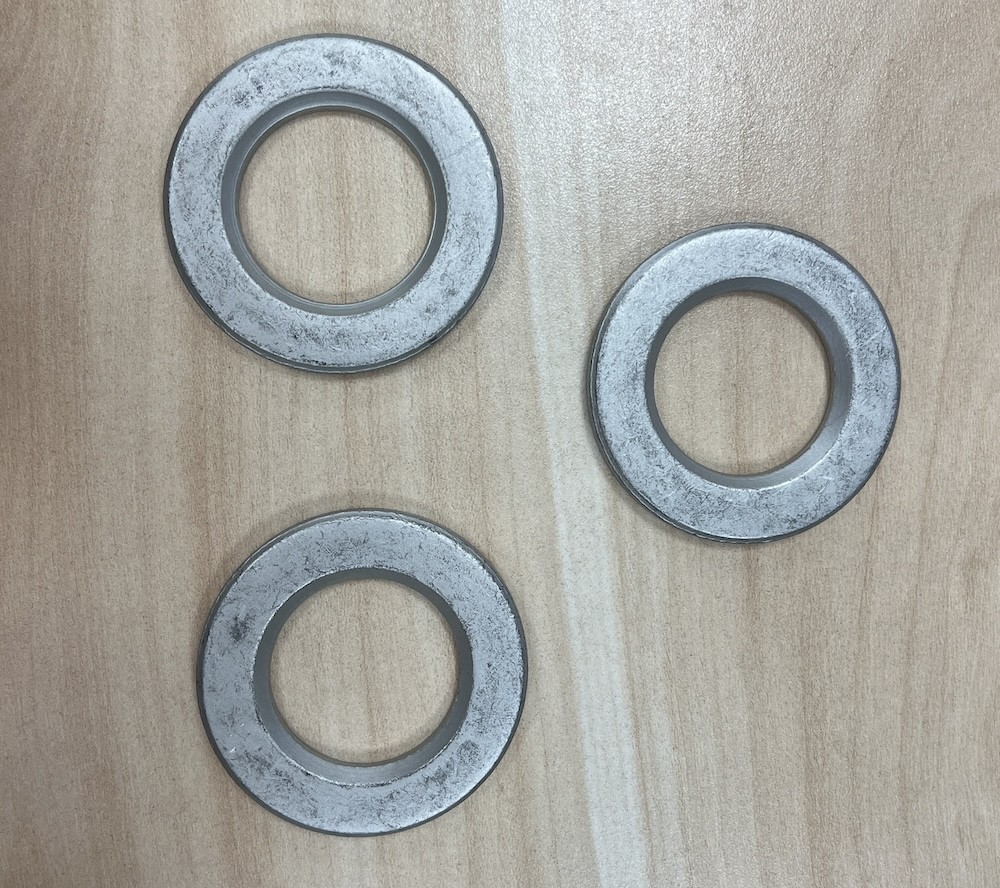

Products pictures for Flat washers
