DIN6916 Flat Steel Washer HDG/Dacromet For Construction
Flat Steel Washer Description:
The DIN 6916 washer, also known as a flat steel washer, is a specific type of washer that conforms to the standards set by the Deutsches Institut für Normung (DIN), which is the German Institute for Standardization. It is commonly used in construction, machinery, and structural applications.
DIN 6916 washers are heavy-duty structural washers designed to meet the stringent standards set by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. These washers are specifically engineered for construction applications where high load-bearing capacity, stability, and reliability are paramount.
Tight Tolerances:
Manufactured to precise DIN standards, these washers have tight tolerances to ensure consistent dimensions and compatibility with construction-grade bolts and nuts.
Load Distribution:
Designed to distribute heavy loads over a larger surface area, DIN 6916 washers help prevent material deformation and ensure a secure and stable connection between structural components.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Bridge Construction:
Usage: DIN 6916 washers are often utilized in the construction of bridges and overpasses where heavy loads and dynamic stresses need to be supported.
Heavy Machinery Assembly:
Usage: In the assembly of heavy machinery and equipment, DIN 6916 washers are used to support critical joints and connections.
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

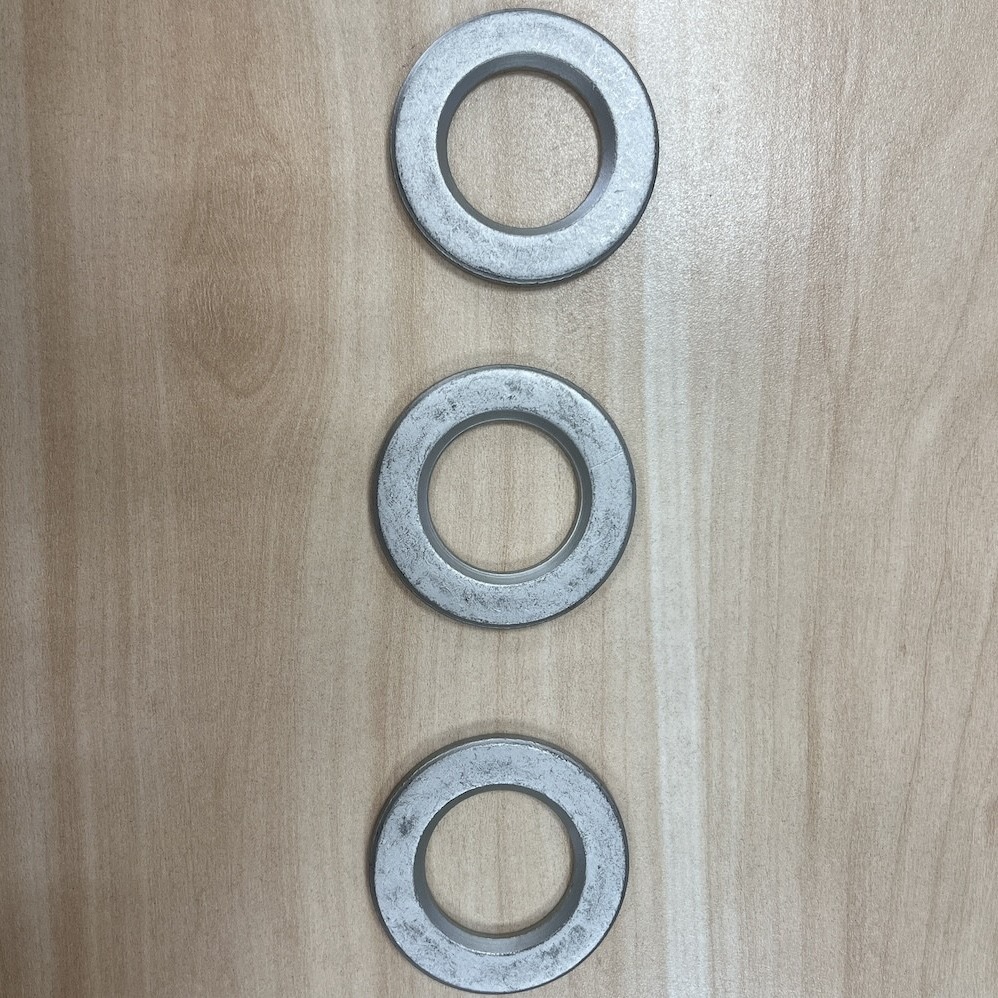

Products pictures for Flat washers
