DIN6916 Flat Steel Washer M12-M36 Plain/ZINC/HDG For Automobile Manufacturing
Flat Steel Washer Description:
DIN 6916 washers are typically manufactured from high-quality steel to provide exceptional strength and durability, ensuring reliable performance in construction projects.
DIN 6916 washers are essential components in construction applications where heavy loads, structural stability, and reliability are paramount. Their specific design features and adherence to DIN standards make them ideal for ensuring the integrity and safety of critical connections in a wide range of construction projects.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
Heavy Machinery Assembly:
Usage: In the assembly of heavy machinery and equipment, DIN 6916 washers are used to support critical joints and connections.
Construction of Industrial Structures:
Usage: DIN 6916 washers play a vital role in the construction of industrial structures such as warehouses, factories, power plants, and refineries.
Purpose: These washers provide reliable support in fastening structural elements, ensuring the stability and safety of the overall construction.
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

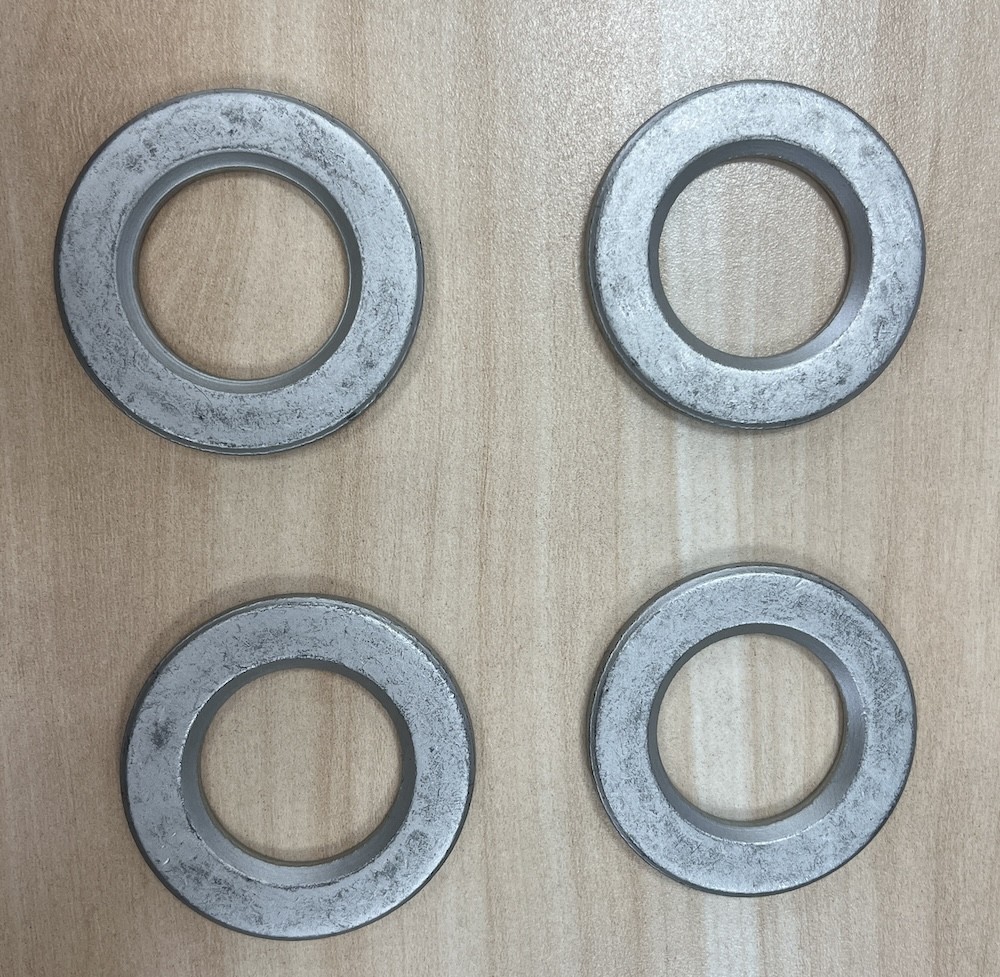

Products pictures for Flat washers
