SAE Flat Steel Washer Carbon Steel Flat Washer
Flat Steel Washer Description:
The SAE washer, also known as a flat steel washer, is a widely used type of washer that conforms to the specifications outlined by the Society of Automotive Engineers (SAE). It is commonly employed in automotive and other mechanical applications to distribute the load of a threaded fastener, such as a bolt or a nut, and provide a smooth bearing surface.
Zinc plated: Zinc plating involves applying a protective coating of zinc to the washer's surface. This finish provides corrosion resistance, enhancing the washer's durability and preventing rust formation. Zinc plated SAE washers are commonly used in a variety of applications.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner |
Inner diameter(min) |
Outside diameter(max) |
Outside diameter(min) |
Thickness |
Thickness (min) |
| 1/4" | 16.26 | 15.75 | 7.52 | 7.01 | 2.03 | 1.3 |
| 5/16" | 17.36 | 17.3 | 9.12 | 8.61 | 2.03 | 1.3 |
| 3/8" | 21 | 20.45 | 10.59 | 10.19 | 2.03 | 1.3 |
| 7/16" | 23.8 | 23.24 | 12.29 | 11.79 | 2.03 | 1.3 |
| 1/2" | 27.74 | 26.8 | 13.87 | 13.36 | 3.07 | 1.88 |
| 9/16" | 30.12 | 29.18 | 15.47 | 14.96 | 3.07 | 1.88 |
| 5/8" | 34.09 | 33.15 | 17.42 | 16.48 | 3.07 | 1.88 |
| 3/4" | 38.07 | 37.13 | 21.39 | 20.45 | 4.06 | 2.74 |
| 7/8" | 45.21 | 44.27 | 24.58 | 23.65 | 4.06 | 2.74 |
| 1" | 51.56 | 50.62 | 27.74 | 26.8 | 4.06 | 2.74 |
| 1-1/8" | 57.91 | 56.97 | 32.51 | 31.57 | 4.06 | 2.74 |
| 1-1/4" | 64.26 | 63.32 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 70.61 | 69.67 | 38.86 | 37.92 | 4.88 | 3.45 |
| 1-1/2" | 76.96 | 76.02 | 42.04 | 41.1 | 4.88 | 3.45 |
Function: The primary function of the SAE washer is to distribute the load and provide a smooth bearing surface under the head of a bolt or the nut. It helps prevent damage to the mating surface, reduces the chance of loosening due to vibrations, and improves the overall stability and performance of the fastener connection.

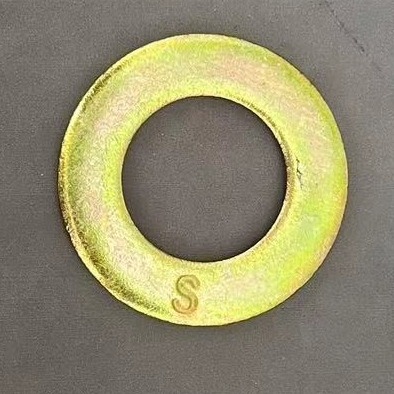

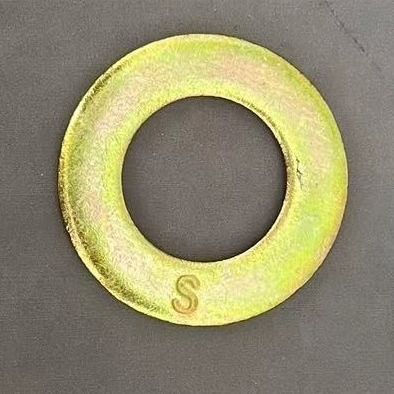

Products pictures for Flat washers
Suzhou YNK Fastener Co., Ltd. (formerly named Wuxian Fasteners) is located at the northern suburb of Suzhou, Jiangsu province, China. The company was established in 1988, spans a total area of 55,000 square meters, employs 330 staff and annual production exceeds 28,000 tons of fasteners.
YNK maintains a strong technically trained and well-equiped workforce. The Company adheres to integrity and high quality enterprise as guiding ideologies. By continually strengthening quality management and innovative marketing methods despite fierce market competition, the company has continued to grow, becoming a leader in the domestic fastener industry.
Through support many famous projects, both our experts and customers have consistently received high praise. We frequently export to: United States, Germany, France, Japan, Middle East, Southeast Asia, Taiwan and other countries/regions.
