DIN125A Washer / Structural Steel Washers M3-M100, Black Oxide

One Pallet For One Size
MOQ
DIN125A Washer / Structural Steel Washers M3-M100, Black Oxide
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN125A Washer/Structural Steel Washer
Material: S45C/40CR
Size: M3-M100
Finish: Plain/Black/ZINC/HDG/Dacromet
Standard: DIN125A
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN125A
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:DIN125A







Material 45#/40CR
Size M3-M100
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days






Size

Inner diameter(min) Inner diameter(max) Outside diameter(max) Outside diameter(min)

Nominal

size

Thickness

(max)

Thickness

(min)

3

3.2 3.38 7 6.64 0.5 0.55 0.45
3.5 3.7 3.88 8 7.64 0.5 0.55 0.45
4 4.3 4.48 9 8.64 0.8 0.9

0.7

5 5.3 5.48 10 9.64 1 1.1 0.9
6 6.4 6.62 12 11.57 1.6 1.8 1.4
7 7.4 7.62 14 13.57 1.6 1.8 1.4
8 8.4 8.62 16 15.57 1.6 1.8 1.4
10 10.5 10.77 20 19.48 2 2.2 1.8
12 13 13.27 24 23.48 2.5 2.7 2.3
14 15 15.27 28 27.48 2.5 2.7 2.3
16 17 17.27 30 29.48 3 3.3 2.7
18 19 19.33 34 33.38 3 3.3 2.7
20 21 21.33 37 36.38 3 3.3 2.7
22 23 23.33 39 38.38 3 3.3 2.7
24 25 25.33 44 43.38 4 4.3 3.7
26 27 27.33 50 49.38 4 4.3 3.7
27 28 28.33 50 49.38 4 4.3 3.7
28 29 29.33 50 49.38 4 4.3 3.7
30 31 31.39 56 55.26 4 4.3 3.7
32 33 33.62 60 58.8 5 5.6 4.4
33 34 34.62 60 58.8 5 5.6 4.4
35 36 36.62 66 64.8 5 5.6 4.4
36 37 37.62 66 64.8 5 5.6 4.4
38 39 39.62 72 70.8 6 6.6 5.4
39 40 40.62 72 70.8 6 6.6 5.4
40 41 41.62 72 70.8 6 6.6 5.4
42 43 43.62 78 76.8 7 8 6
45 46 46.62 85 83.6 7 8 6
48 50 50.62 92 90.6 8 9 7
50 52 52.74 92 90.6 8 9 7
52 54 54.74 98 96.6 8 9 7
55 57 57.74 105 103.6 9 10 8
56 58 58.74 105 103.6 9 10 8
58 60 60.74 110 108.6 9 10 8
60 62 62.74 110 108.6 9 10 8
64 66 66.74 115 113.6 9 10 8
68 70 70.74 120 118.6 10 11 9
72 74 74.74 125 123.4 10 11 9
76 78 78.74 135 133.4 10 11 9
80 82 82.87 140 138.4 12 13.2 10.8
85 87 87.87 145 143.4 12 13.2 10.8
90 93 93.87 160 158.4 12 13.2 10.8
95 98 98.87 165 163.4 12 13.2 10.8

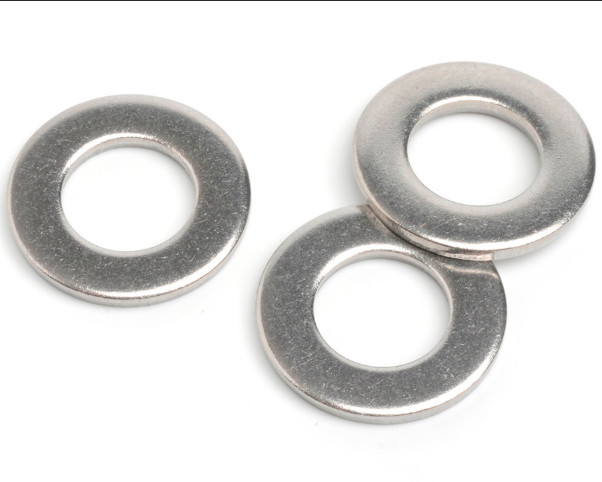

Products pictures for Flat washers

DIN125A Washer / Structural Steel Washers M3-M100, Black Oxide 0DIN125A Washer / Structural Steel Washers M3-M100, Black Oxide 1DIN125A Washer / Structural Steel Washers M3-M100, Black Oxide 2
