Standard:DIN6916
Description:
The DIN 6916 washer, also known as a structural steel washer, is a type of washer that conforms to the DIN 6916 standard. These washers are commonly used in construction, engineering, and industrial applications where high load-bearing capacity and durability are required.
The M12-M36 size range indicates that these washers are suitable for use with bolts or threaded fasteners ranging from M12 to M36 in diameter.
Regarding the surface finish, DIN 6916 washers can be available with a black oxide finish. Black oxide is a conversion coating that forms a thin layer of black oxide on the surface of the washer. This finish provides some corrosion resistance and also offers an attractive black appearance.
The black oxide finish helps to improve the durability and resistance to rust of the washer, making it suitable for applications where moderate corrosion resistance is required.
The choice of black oxide finish for DIN 6916 washers can provide a combination of functionality and aesthetics, particularly in applications where both corrosion resistance and visual appeal are important factors.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

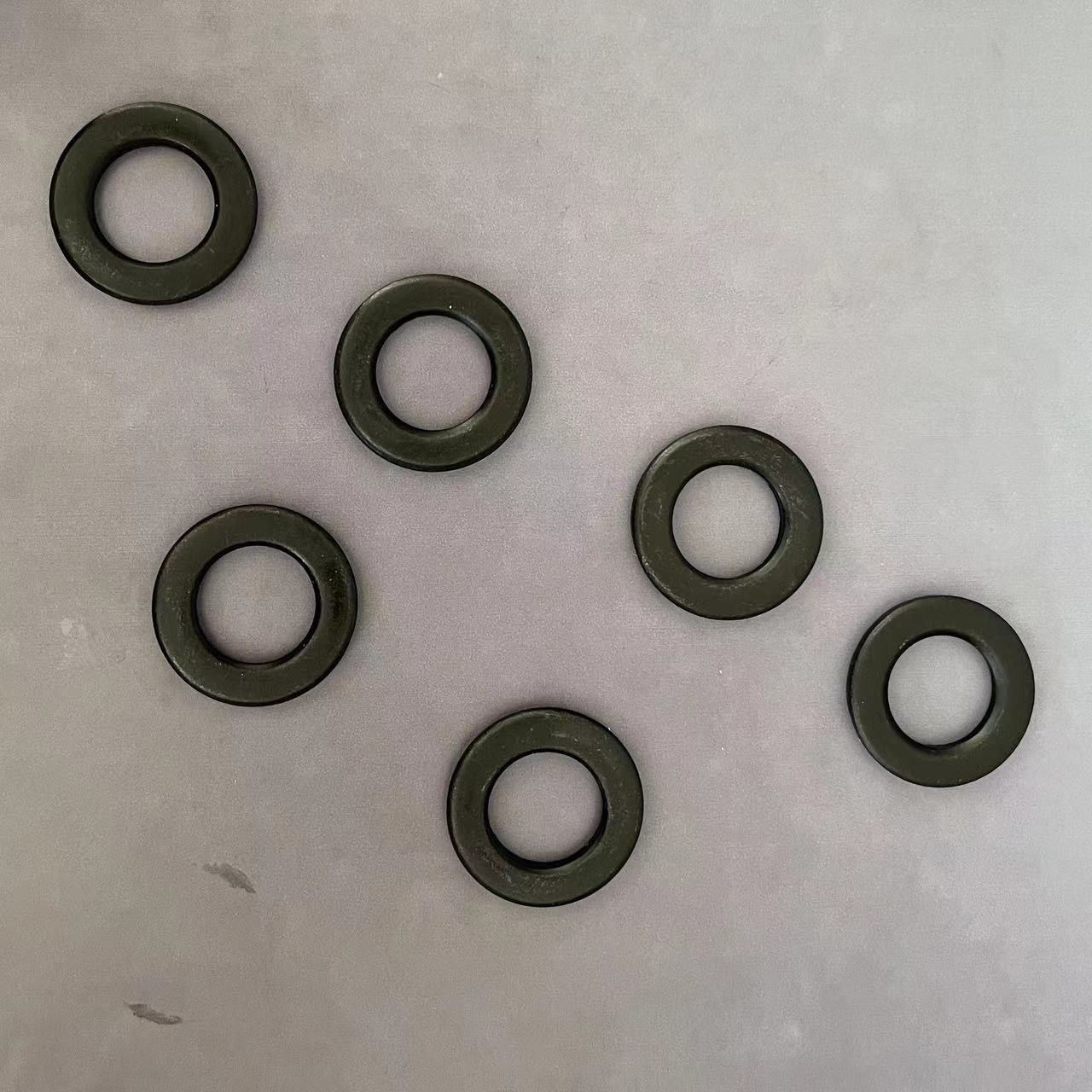

Products pictures for Flat washers
