USS Washer/High Tensile Washer, 1/4" - 3", Zinc plated/HDG

One Pallet For One Size
MOQ
USS Washer/High Tensile Washer, 1/4" - 3", Zinc plated/HDG
Features Gallery Product Description Request A Quote
Features
Specifications
Name: USS Washer/High Tensile Washer
Material: S45C/40CR
Size: 1/4" - 3"
Finish: Plain/black/ZINC/HDG/Dacromet
Standard: USS
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
High Light:

USS High Tensile Washers HDG

,

High Tensile HDG plain washer m16

,

High Tensile plain washer m16 OEM

Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: USS
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:USS

Description:

      USS washers, also known as high tensile washers, are commonly used in various applications to distribute the load of a threaded fastener, such as a bolt or screw, and provide a smooth surface for the nut or bolt head to bear against. USS stands for "United States Standard" and refers to the dimensions of the washers according to American standards.

      The size range of USS washers is typically specified in fractional inches, such as 1/4" to 3". This indicates that USS washers can accommodate fasteners with diameters ranging from 1/4" to 3".

      USS washers are available with two common coating options: zinc plated and hot-dip galvanized (HDG).

      Zinc plated USS washers have a thin layer of zinc electroplated onto the surface. The zinc coating provides a sacrificial layer that helps protect the washer from corrosion. Zinc plating offers moderate corrosion resistance and is commonly used in indoor or low-corrosion environments.

      HDG (hot-dip galvanized) USS washers undergo a hot-dip galvanizing process, where they are immersed in a bath of molten zinc. This forms a thicker and more durable zinc coating compared to zinc plating. HDG provides enhanced corrosion resistance and is suitable for outdoor, high-moisture, or corrosive environments.

      When selecting between zinc plated and HDG USS washers, consider the specific environmental conditions in which they will be used. If the application involves exposure to moisture, humidity, or corrosive substances, HDG USS washers would provide better corrosion protection. For indoor or low-corrosion environments, zinc plated USS washers may be sufficient.





Material 45#/40CR
Size 1/4"-3"
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days





Size

Inner

diamater

(max)

Inner diamater

(min)

Outside diamater

(max)

Outside diamater

(min)

Thickness

(max)

Thickness

(min)

3/16"

14.66

14.15 6.73 6.22 1.65 0.91
1/4" 19.02 18.47 8.31 7.8 2.03 1.3
5/16" 22.99 22.05 9.91 9.4 2.64 1.63
3/8" 26.16 25.22 11.51 11 2.64 1.63
7/16" 32.51 31.57 13.08 12.57 2.64 1.63
1/2" 35.69 34.57 14.66 14.15 3.35 2.18
9/16" 38.07 37.13 16.25 15.75 3.35 2.18
5/8" 45.21 44.27 18.24 17.3 4.06 2.74
3/4" 51.56 50.62 21.39 20.45 4.5 3.1
7/8" 57.91 56.97 24.58 23.65 4.88 3.45
1" 64.26 63.32 27.74 26.8 4.88 3.45
1-1/8" 70.61 69.67 32.51 31.57 4.88 3.45
1-1/4" 76.96 76.02 35.69 34.75 4.88 3.45
1-3/8" 83.69 82.3 39.24 37.85 5.41 3.45
1-1/2“ 90.04 88.65 42.42 41.02 5.41 3.45
1-5/8" 96.39 95 45.59 44.2 5.41 3.89
1-3/4” 102.74 101.35 48.77 47.37 5.41 3.89
1-7/8“ 109.09 107.7 51.94 50.55 5.41 3.89
2”

115.44

114.05 55.12 53.72 5.41 3.89
2-1/4“ 121.79 120.4 61.47 60.07 6.3 4.9
2-1/2” 128.14 126.75 67.82 66.42 7.11 5.33
2-3/4“ 135 133.1 74.68 72.77 7.87 5.79
3” 141.35 139.45 81.03 79.12 8.31 6.32

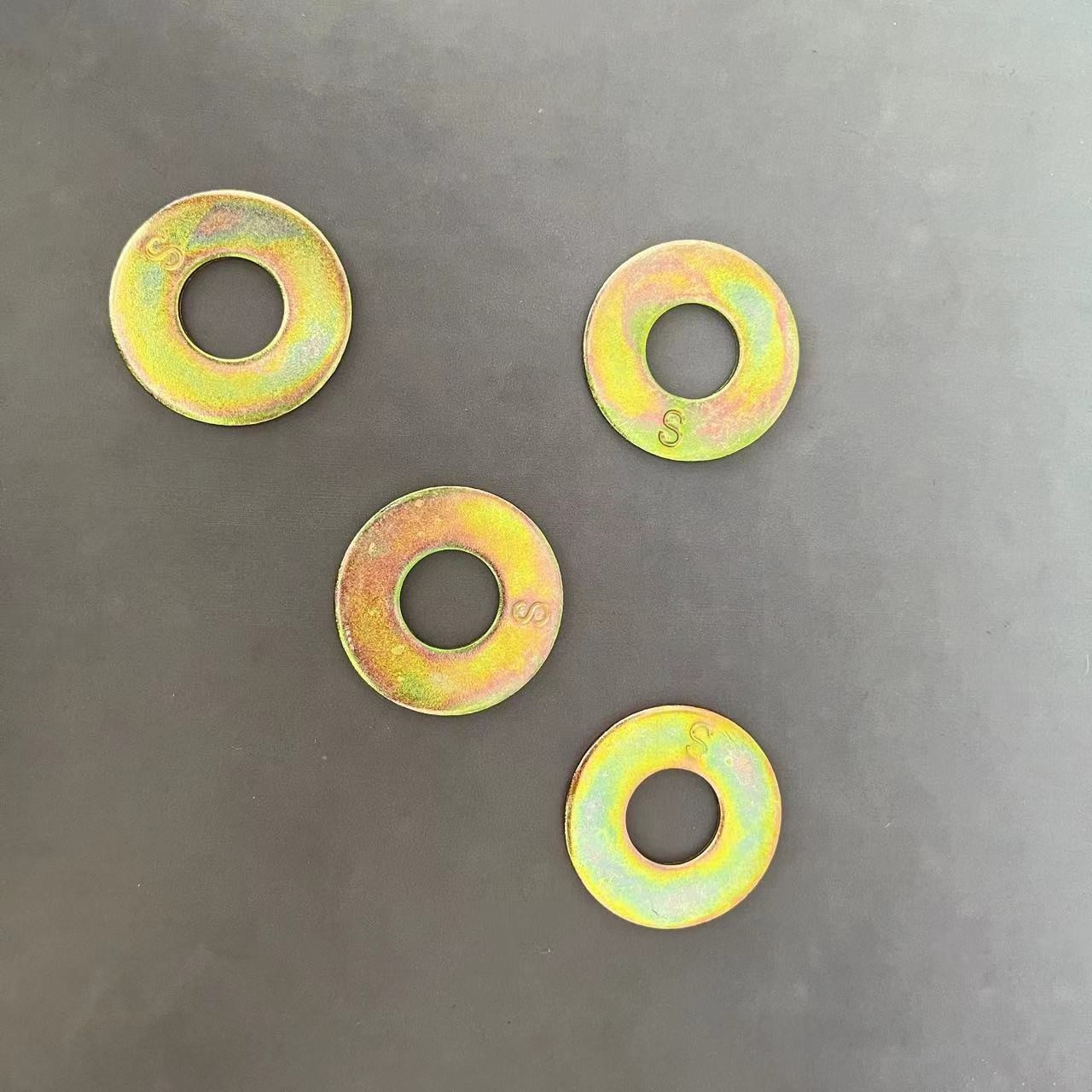

Products pictures for Flat washers

USS Washer/High Tensile Washer, 1/4" - 3", Zinc plated/HDG 0USS Washer/High Tensile Washer, 1/4" - 3", Zinc plated/HDG 1USS Washer/High Tensile Washer, 1/4" - 3", Zinc plated/HDG 2
