Standard:EN14399-6
Description:
EN 14399-6 washers, also known as high tensile washers or structural washers, are specifically designed for use with high-strength structural steel bolts according to the EN 14399 series of standards. These washers conform to the requirements specified in the EN 14399-6 standard, which defines the dimensions and material properties for these washers.
The size range of EN 14399-6 washers is typically specified in metric measurements, such as M12 to M36. This indicates that EN 14399-6 washers can accommodate metric fasteners with diameters ranging from M12 to M36.
EN 14399-6 washers are commonly available with two popular coating options: zinc plated and hot-dip galvanized (HDG).
Zinc plated EN 14399-6 washers have a thin layer of zinc electroplated onto the surface. The zinc coating provides a sacrificial layer that helps protect the washer from corrosion. Zinc plating offers moderate corrosion resistance and is commonly used in indoor or low-corrosion environments.
HDG (hot-dip galvanized) EN 14399-6 washers undergo a hot-dip galvanizing process, where they are immersed in a bath of molten zinc. This forms a thicker and more durable zinc coating compared to zinc plating. HDG provides enhanced corrosion resistance and is suitable for outdoor, high-moisture, or corrosive environments.
When choosing between zinc plated and HDG EN 14399-6 washers, consider the specific environmental conditions in which they will be used. If the application involves exposure to moisture, humidity, or corrosive substances, HDG EN 14399-6 washers would provide better corrosion protection. For indoor or low-corrosion environments, zinc plated EN 14399-6 washers may be sufficient.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

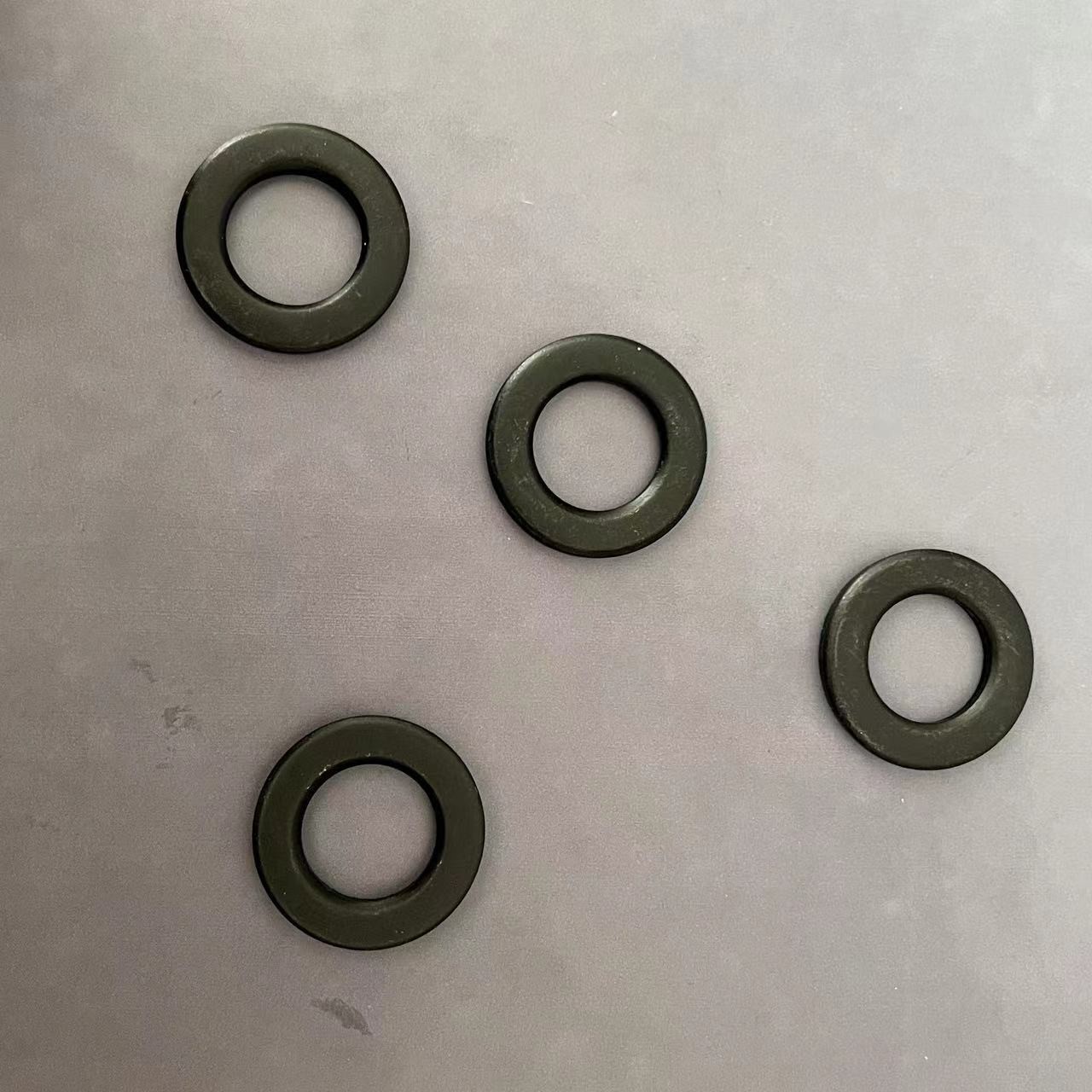

Products pictures for Flat washers
