Standard:DIN9021
Description:
DIN 9021 washers, also known as heavy washers, are designed to provide a larger bearing surface and distribute the load when used in conjunction with bolts or screws. These washers conform to the DIN 9021 standard, which specifies their dimensions and tolerances. They are available in a wide range of metric sizes, from M6 to M100, accommodating various bolt sizes.
DIN 9021 washers come with two surface finish options: plain and Dacromet.
1.Plain finish: Plain washers have no additional coating or finish applied to them. They are typically made of carbon steel and do not provide corrosion resistance. These washers are suitable for use in indoor or dry environments where corrosion is not a concern. However, they may rust over time if exposed to moisture or corrosive elements.
2.Dacromet finish: Dacromet is a brand name for a type of coating that offers excellent corrosion resistance. It is an inorganic coating applied to the surface of the washers through a dip-spin process. Dacromet coatings provide a high level of protection against corrosion, salt spray, and various chemicals. They are commonly used in applications where washers are exposed to harsh environments or where long-term corrosion protection is required.
DIN 9021 washers are widely used in construction, automotive, and various other industries where secure fastening and load distribution are essential. The choice between plain and Dacromet finishes depends on the specific application requirements, including the level of corrosion resistance needed.
Please note that when selecting washers for a particular application, it's important to consider the specific environmental conditions, the materials being fastened, and any relevant industry standards or regulations.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |

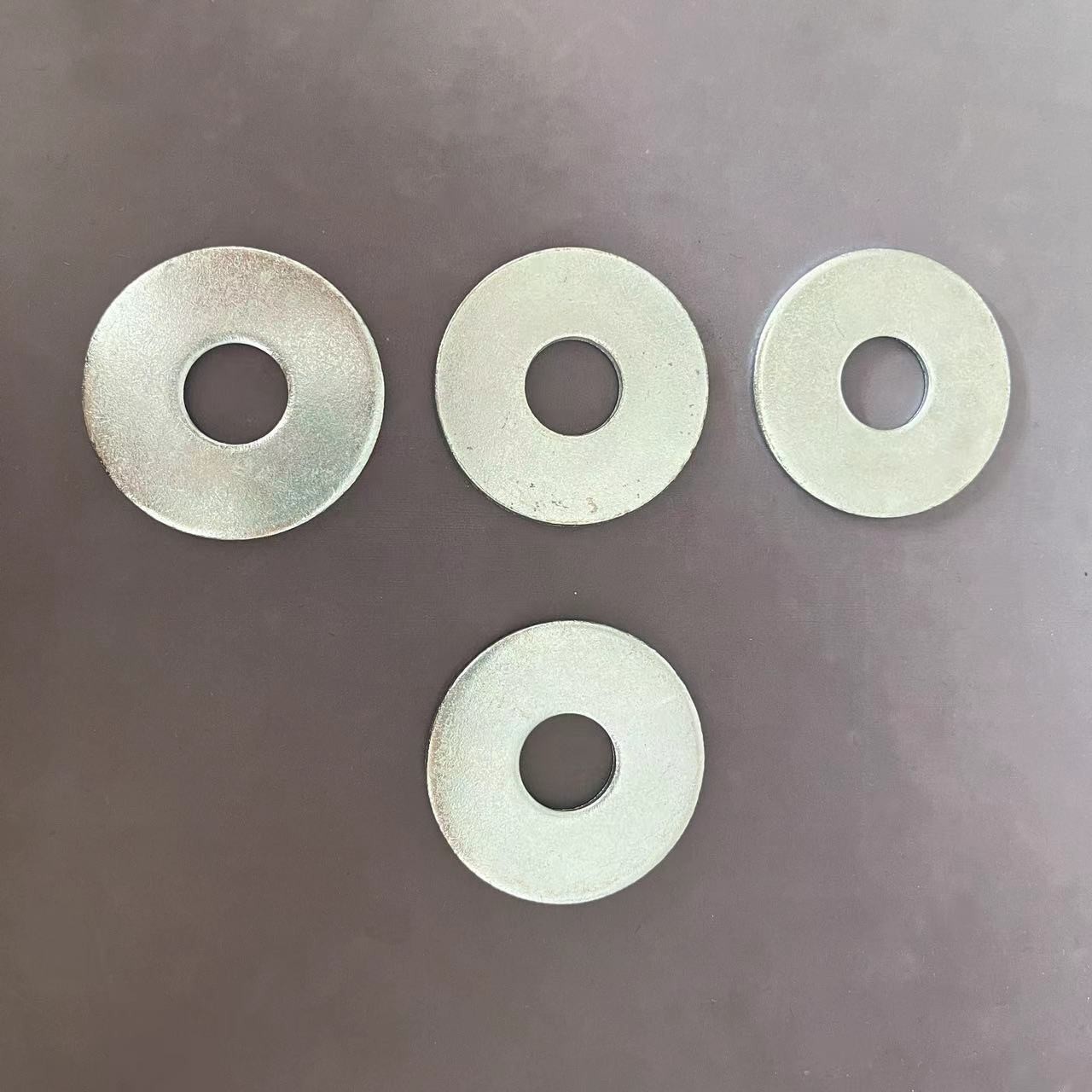

Products pictures for Flat washers
