Standard:EN14399-6
Description:
EN 14399-6 washers, also referred to as heavy washers, are designed for high-strength structural bolting assemblies. They adhere to the EN 14399-6 standard, which specifies their dimensions, material requirements, and mechanical properties. The size range you mentioned, M12-M36, indicates that these washers are available in metric sizes ranging from M12 to M36.
When it comes to surface finishes for EN 14399-6 washers, two common options are zinc plated and hot-dip galvanized (HDG). Let's explore each of these finishes:
1.Zinc plated: Zinc plating involves applying a thin layer of zinc to the surface of the washer. This coating provides moderate corrosion resistance and acts as a protective barrier against moisture and oxidation. Zinc-plated washers are commonly used in indoor or dry environments where exposure to harsh elements is limited. They offer a silver or slightly yellowish appearance.
2.Hot-dip galvanized (HDG): HDG involves immersing the washers in a bath of molten zinc, creating a thicker and more robust coating compared to zinc plating. Hot-dip galvanizing provides excellent corrosion resistance, making it suitable for use in outdoor or highly corrosive environments. HDG washers have a distinctive dull gray or matte finish.
The choice between zinc plated and HDG finishes depends on the specific application requirements, considering factors such as the operating environment and the desired level of corrosion protection. HDG is typically preferred for applications where enhanced corrosion resistance is vital, while zinc plated washers may be suitable for less demanding environments.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

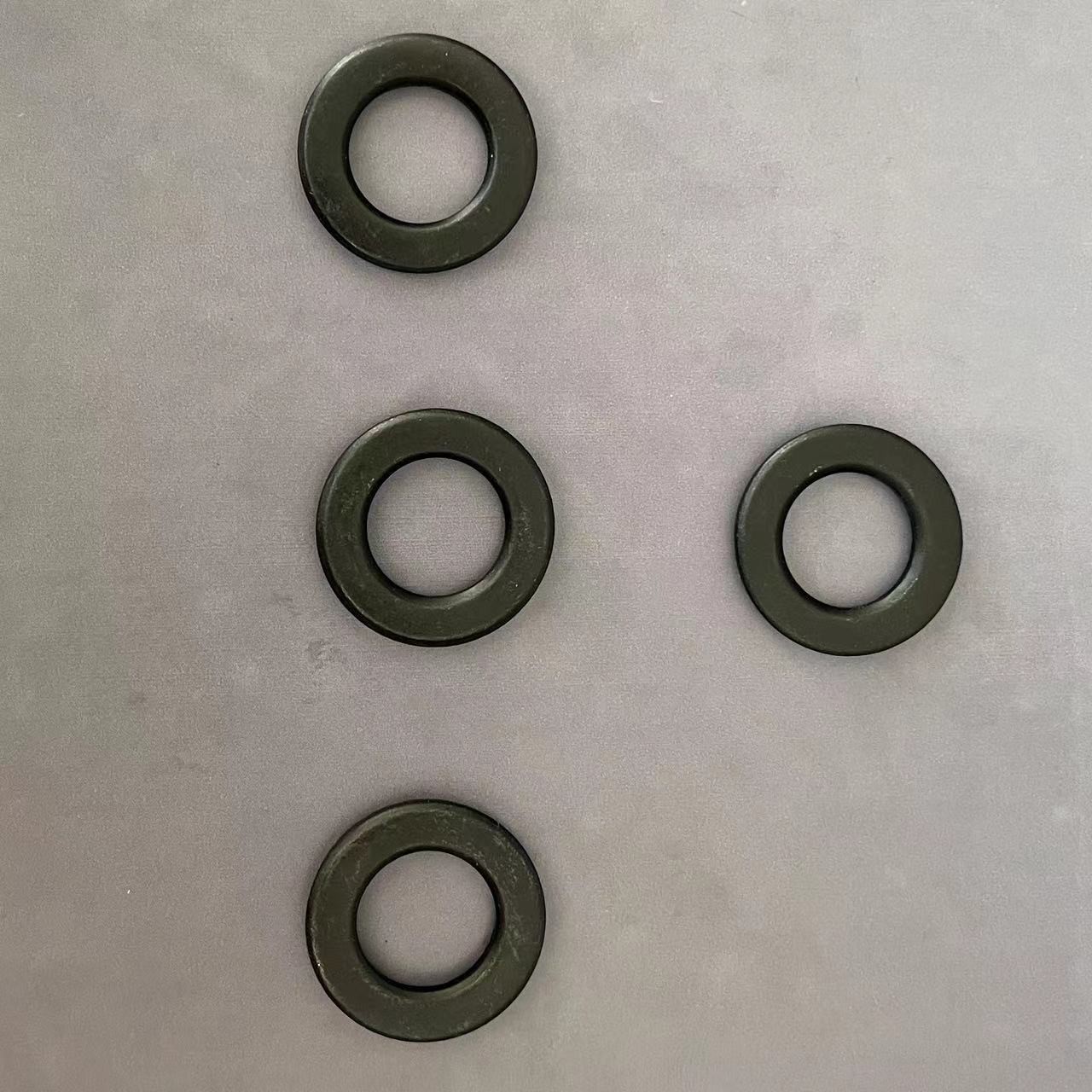

Products pictures for Flat washers
