Standard:DIN9021
Description:
The DIN 9021 washer, also known as a flat steel washer, is a standard washer used in various applications to distribute the load of a threaded fastener, such as a bolt or a nut. It conforms to the specifications outlined in the German Industrial Norm (DIN) 9021.
Here are some details about the DIN 9021 washer:
Size range: M6 to M100. This indicates that the washer is available in various sizes, with M6 being the smallest and M100 being the largest. The size refers to the nominal diameter of the fastener it is designed to fit.
Finish options: The DIN 9021 washer can be found in two common finishes:
1.Zinc Plated: This refers to a protective coating of zinc applied to the washer's surface. Zinc plating provides corrosion resistance, improving the washer's durability and preventing rusting.
2.Hot-Dip Galvanized (HDG): In this process, the washer is immersed in a bath of molten zinc, resulting in a thicker and more durable zinc coating than standard zinc plating. HDG provides excellent corrosion protection and is often used in outdoor or harsh environments.
Material: The DIN 9021 washer is typically made of steel. The specific grade of steel used can vary, but it is often low or medium carbon steel.
Function: The primary function of the DIN 9021 washer is to distribute the load and provide a smooth bearing surface under the head of a bolt or the nut. It helps prevent damage to the mating surface, reduces the chance of loosening due to vibrations, and improves the overall stability and performance of the fastener connection.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |

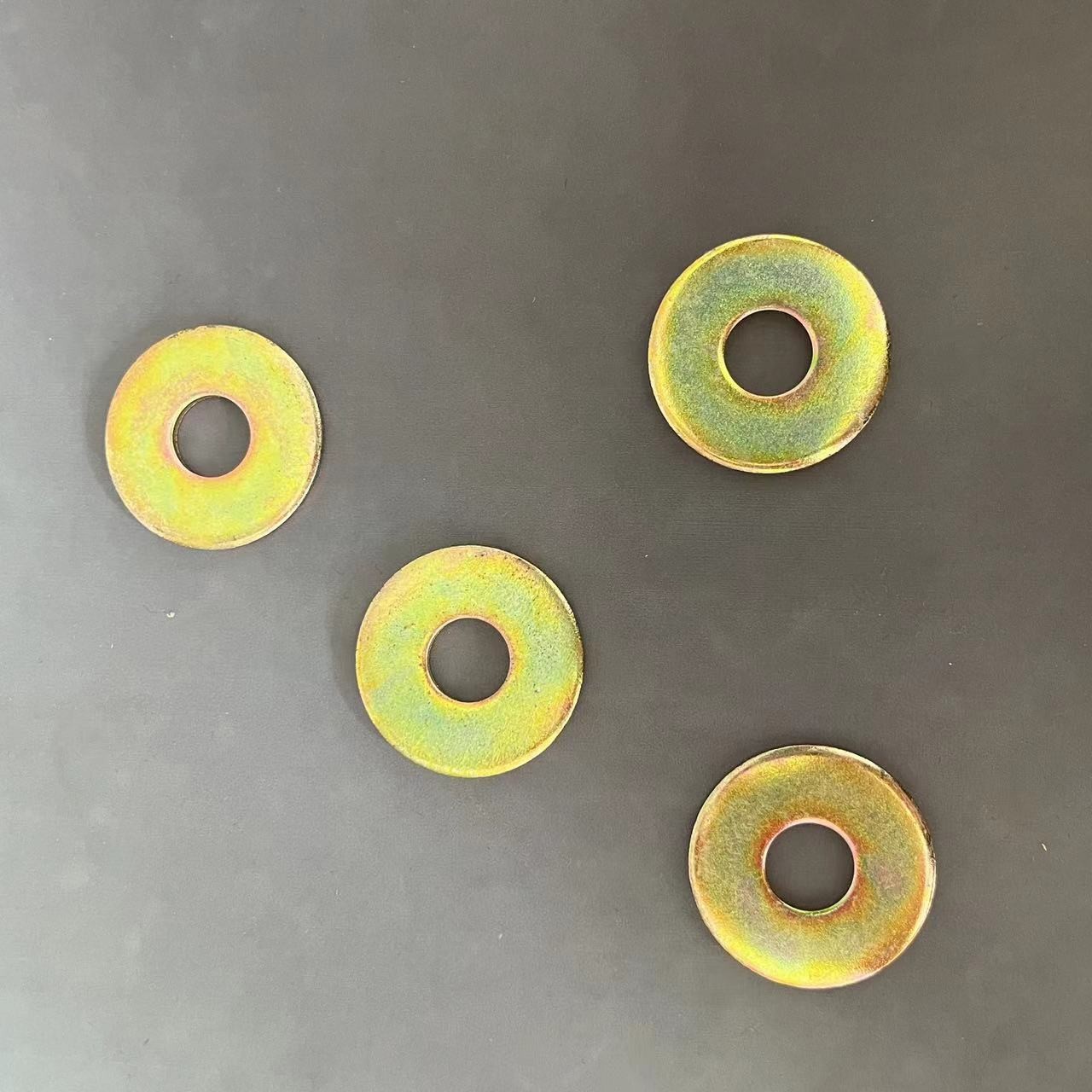

Products pictures for Flat washers
