DIN6916 Washer/Chamfered Washer M12-M36 Plain/Dacromet Zinc plated
Standard:DIN6916
Description:
DIN 6916 is a standard that specifies the characteristics of chamfered washers used in structural steelwork. DIN 6916 chamfered washers are typically large diameter washers with a chamfered edge, designed to be used in heavy-duty applications where high-strength connections are required.
Heavy-duty structural washers find application in a wide range of construction and engineering scenarios where strong and reliable connections are essential.
Material:
These washers are often made from high-strength materials such as steel or stainless steel to provide reliable support and load distribution in structural applications.
Chamfered Edge:
The chamfered edge helps with alignment, easing installation, and reducing the risk of damage to the material being fastened.
Load Distribution:
The large diameter of DIN 6916 washers allows for better load distribution, particularly in applications where high loads are present.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

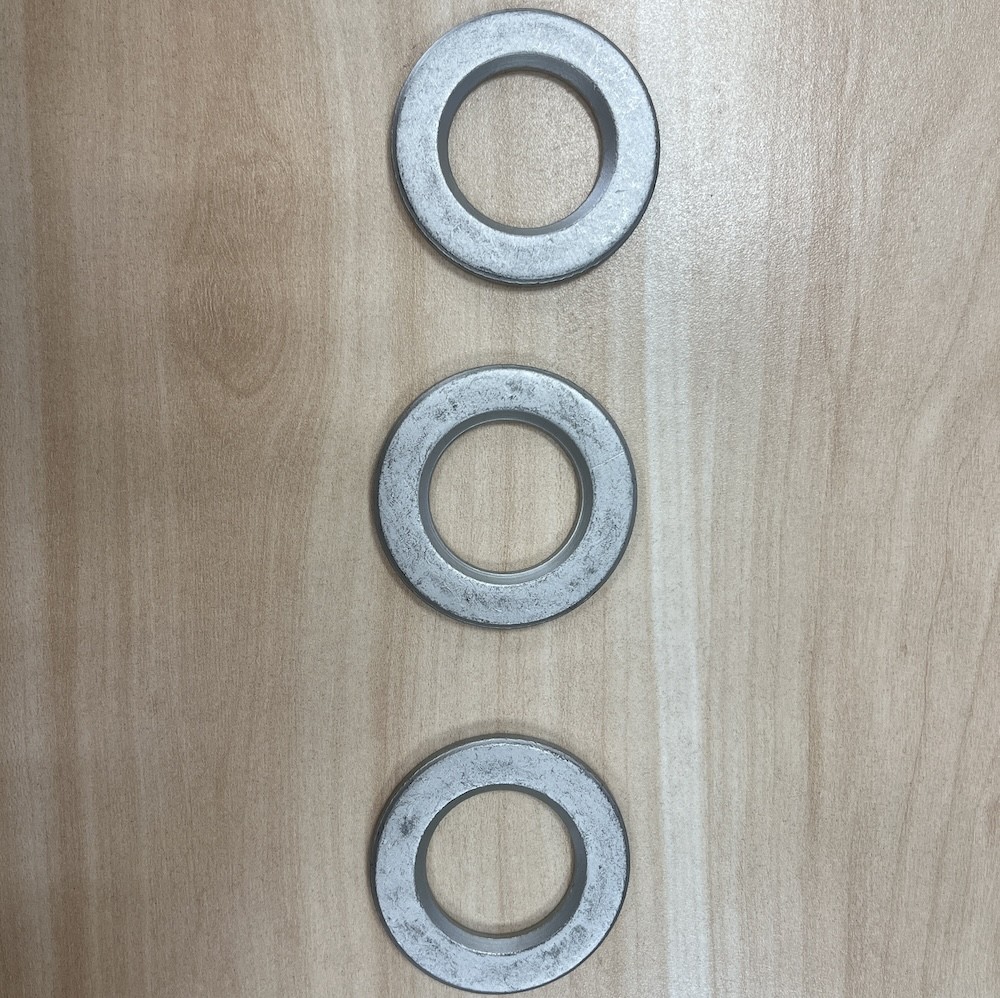

Products pictures for Flat washers
