SAE Washer/Plain Washer, 1/4" - 3", Zinc plated/HDG

One Pallet For One Size
MOQ
SAE Washer/Plain Washer, 1/4" - 3", Zinc plated/HDG
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SAE Washer/Plain Washer
Material: S45C/40CR
Size: 1/4" - 3"
Finish: Plain/black/ZINC/HDG/Dacromet
Standard: SAE
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
High Light:

40CR SAE Plain Washers

,

S45C thin flat washers

,

thin flat washers OEM ODM

Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: SAE
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description

Standard:SAE

Description:

      SAE washers, also known as plain washers, are commonly used in North America and specified by the Society of Automotive Engineers (SAE) standards. They are used to distribute the load and provide a larger bearing surface when used with bolts or screws. The size range you mentioned, 1/4" to 3", refers to the nominal diameter of the bolt or screw they are designed to work with.

      Regarding surface finishes for SAE washers, two common options are zinc plated and hot-dip galvanized (HDG). Let's explore each of these finishes:

      1.Zinc plated: Zinc plating is a common finish for washers. It involves applying a thin layer of zinc to the surface of the washer through an electroplating process. Zinc plating provides moderate corrosion resistance and helps protect the washer from rusting. It is commonly used in indoor or dry environments where exposure to moisture or corrosive elements is limited. However, over time, zinc-plated washers may corrode if subjected to harsh conditions or prolonged exposure to moisture.

      2.Hot-dip galvanized (HDG): Hot-dip galvanizing is a process where the washer is immersed in molten zinc, creating a thick, durable coating. HDG provides excellent corrosion resistance and is suitable for outdoor or highly corrosive environments. The thick layer of zinc coating acts as a barrier, protecting the washer from rust and corrosion. HDG washers are commonly used in applications where long-term corrosion protection is required, such as construction, infrastructure, and marine environments.

      The choice between zinc plated and hot-dip galvanized finishes for SAE washers depends on the specific application requirements, considering factors such as the operating environment and the desired level of corrosion protection. Zinc-plated washers are typically suitable for indoor or less demanding environments, while hot-dip galvanized washers are preferred for outdoor or highly corrosive environments.







Material 45#/40CR
Size 1/4"-3"
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days





Size

Inner

diameter(max)

Inner

diameter(min)

Outside

diameter(max)

Outside

diameter(min)

Thickness

(max)

Thickness

(min)

1/4" 16.26 15.75 7.52 7.01 2.03 1.3
5/16" 17.36 17.3 9.12 8.61 2.03 1.3
3/8" 21 20.45 10.59 10.19 2.03 1.3
7/16" 23.8 23.24 12.29 11.79 2.03 1.3
1/2" 27.74 26.8 13.87 13.36 3.07 1.88
9/16" 30.12 29.18 15.47 14.96 3.07 1.88
5/8" 34.09 33.15 17.42 16.48 3.07 1.88
3/4" 38.07 37.13 21.39 20.45 4.06 2.74
7/8" 45.21 44.27 24.58 23.65 4.06 2.74
1" 51.56 50.62 27.74 26.8 4.06 2.74
1-1/8" 57.91 56.97 32.51 31.57 4.06 2.74
1-1/4" 64.26 63.32 35.69 34.75 4.88 3.45
1-3/8" 70.61 69.67 38.86 37.92 4.88 3.45
1-1/2" 76.96 76.02 42.04 41.1 4.88 3.45

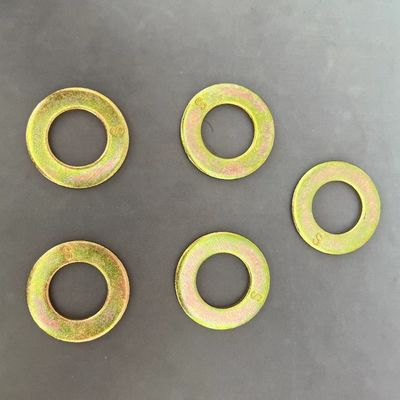

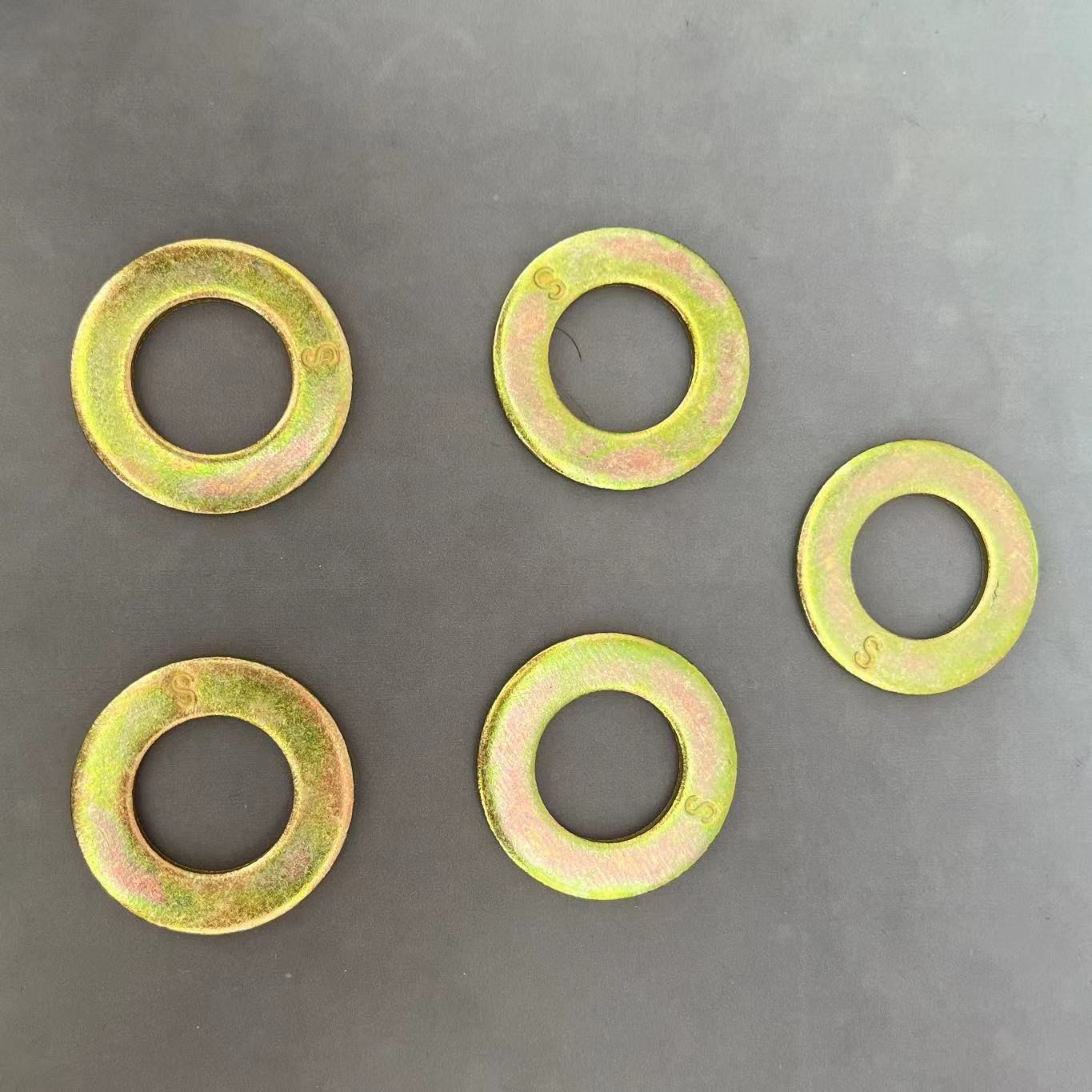

Products pictures for Flat washers

SAE Washer/Plain Washer, 1/4" - 3", Zinc plated/HDG 0SAE Washer/Plain Washer, 1/4" - 3", Zinc plated/HDG 1SAE Washer/Plain Washer, 1/4" - 3", Zinc plated/HDG 2
