HV300 DIN6916 Hardened Steel Washer For Automobile Manufacturing
Standard:DIN6916
Description:
The DIN 6916 Hardened Steel Washer is a specialized flat washer designed to enhance the performance of bolted connections in high-stress environments.
A Hardened Steel Washer is a flat washer made from hardened steel, designed to provide enhanced strength and load distribution in various applications.
· Material: Made from steel that has undergone a hardening process, which increases its tensile strength and resistance to deformation.
· Design: Typically flat and circular, allowing for effective load distribution over a larger surface area.
· Thickness: Generally thicker than standard washers, which contributes to its durability and load-bearing capacity.
· Load Distribution: Effectively spreads the load of a fastener, minimizing the risk of damage to the materials being joined.
· Increased Strength: The hardened nature allows the washer to withstand higher stresses compared to regular washers.
· Corrosion Resistance: Many hardened steel washers are coated or treated to resist rust and corrosion, enhancing durability.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness |
Thickness |
Thickness (min) |
Inside chamfer |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

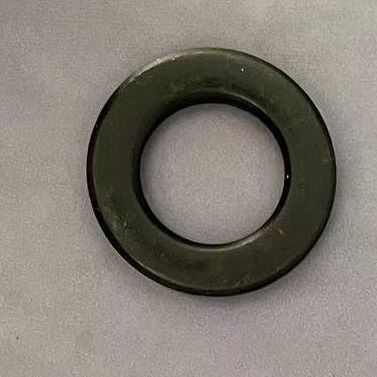

Products pictures for Flat washers
