DIN6916 Hardened Steel Washer, HRC35-45 M12-M36, Plain/Dacromet
Standard:DIN6916
Description:
A Hardened Steel Washer is a flat washer made from hardened steel, designed to provide enhanced strength and load distribution in various applications.
Hardened Steel Washers are essential components in applications requiring reliability, strength, and durability, making them a popular choice in various industries, including construction, automotive, and heavy machinery.
It's important to note that regardless of the finish, DIN 6916 washers in the M12 to M36 size range are made from hardened steel and provide high-strength and load-bearing capabilities. The washers' primary function is to distribute the load and ensure even pressure distribution when securing bolts or nuts in structural or heavy-duty applications.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

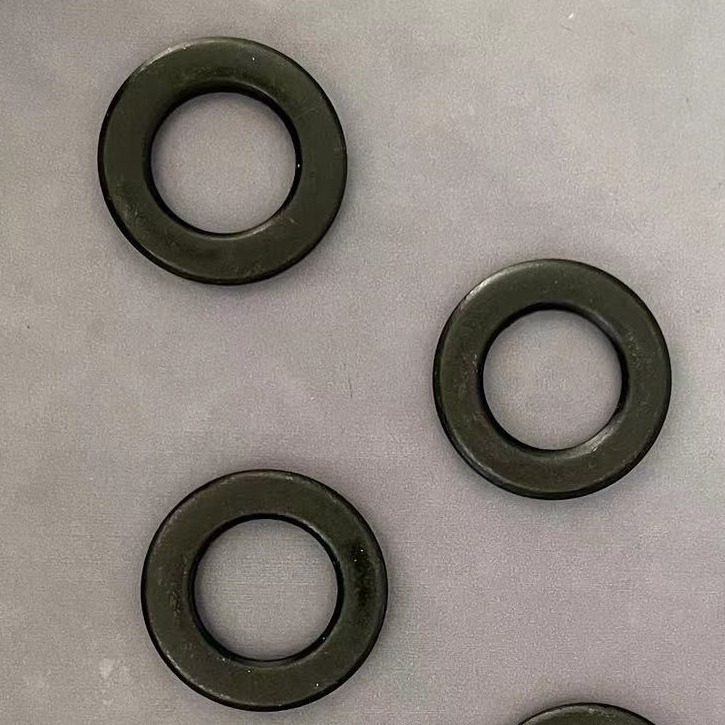

Products pictures for Flat washers
