EN14399-6 Hardened Steel Washer, M12-M36, Plain/Dacromet for Structural Engineering
Description:
EN 14399-6 hardened steel washers are high-strength washers that conform to the European standard EN 14399-6, which specifies the requirements for washers used with high-strength structural bolts. These washers are specifically designed to provide enhanced load-bearing capabilities and durability in critical applications.
EN 14399-6 washers adhere to the dimensional requirements outlined in the standard to ensure compatibility with corresponding bolts and nuts.
Hardened Steel:
EN 14399-6 washers are typically manufactured from hardened steel, which undergoes a heat treatment process to increase its strength and hardness, making it suitable for use with high-strength bolts.
Flat Circular Shape:
These washers feature a flat, circular design with a centrally located hole, allowing for uniform load distribution under the head of high-strength structural bolts.
Specific Dimensions:
EN 14399-6 washers adhere to the dimensional requirements outlined in the standard to ensure compatibility with corresponding bolts and nuts.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size | Inner diameter | Inner diameter (max) | Outside diameter (max) | Outside diameter (min) | Thickness | Thickness | Thickness (min) | Inside chamfer | Inside chamfer (max) | External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

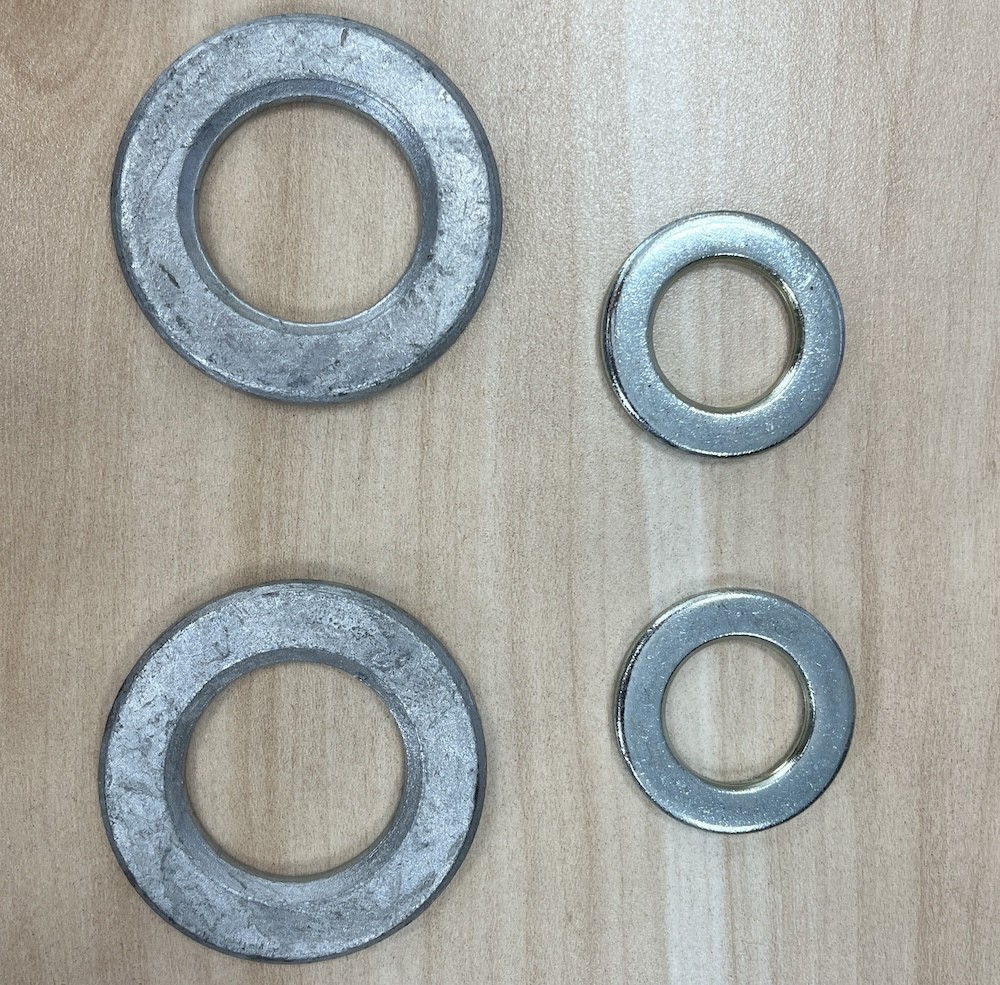

Products pictures for Flat washers
