Standard:USS
Description:
USS washers, also known as high tensile washers, are commonly used in various applications to distribute the load of a threaded fastener, such as a bolt or screw, and provide a smooth surface for the nut or bolt head to bear against. USS stands for "United States Standard" and refers to the dimensions of the washers according to American standards.
The size range of USS washers is typically specified in fractional inches, such as 1/4" to 3". This indicates that USS washers can accommodate fasteners with diameters ranging from 1/4" to 3".
Black oxide coating is a surface treatment process that creates a black finish on the surface of a metal component. It offers several benefits, including enhanced corrosion resistance and an appealing aesthetic. The black oxide coating can also help to reduce glare and improve lubricity.
USS washers with a black oxide coating provide not only the functionality of a high tensile washer but also the added benefits of corrosion resistance and an attractive black finish. The black oxide coating can help protect the washers from rust and other forms of corrosion, making them suitable for various environments, including indoor and outdoor applications.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diamater (max) |
Inner diamater (min) |
Outside diamater (max) |
Outside diamater (min) |
Thickness (max) |
Thickness (min) |
| 3/16" |
14.66 |
14.15 | 6.73 | 6.22 | 1.65 | 0.91 |
| 1/4" | 19.02 | 18.47 | 8.31 | 7.8 | 2.03 | 1.3 |
| 5/16" | 22.99 | 22.05 | 9.91 | 9.4 | 2.64 | 1.63 |
| 3/8" | 26.16 | 25.22 | 11.51 | 11 | 2.64 | 1.63 |
| 7/16" | 32.51 | 31.57 | 13.08 | 12.57 | 2.64 | 1.63 |
| 1/2" | 35.69 | 34.57 | 14.66 | 14.15 | 3.35 | 2.18 |
| 9/16" | 38.07 | 37.13 | 16.25 | 15.75 | 3.35 | 2.18 |
| 5/8" | 45.21 | 44.27 | 18.24 | 17.3 | 4.06 | 2.74 |
| 3/4" | 51.56 | 50.62 | 21.39 | 20.45 | 4.5 | 3.1 |
| 7/8" | 57.91 | 56.97 | 24.58 | 23.65 | 4.88 | 3.45 |
| 1" | 64.26 | 63.32 | 27.74 | 26.8 | 4.88 | 3.45 |
| 1-1/8" | 70.61 | 69.67 | 32.51 | 31.57 | 4.88 | 3.45 |
| 1-1/4" | 76.96 | 76.02 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 83.69 | 82.3 | 39.24 | 37.85 | 5.41 | 3.45 |
| 1-1/2" | 90.04 | 88.65 | 42.42 | 41.02 | 5.41 | 3.45 |
| 1-5/8" | 96.39 | 95 | 45.59 | 44.2 | 5.41 | 3.89 |
| 1-3/4" | 102.74 | 101.35 | 48.77 | 47.37 | 5.41 | 3.89 |
| 1-7/8" | 109.09 | 107.7 | 51.94 | 50.55 | 5.41 | 3.89 |
| 2" |
115.44 |
114.05 | 55.12 | 53.72 | 5.41 | 3.89 |
| 2-1/4" | 121.79 | 120.4 | 61.47 | 60.07 | 6.3 | 4.9 |
| 2-1/2" | 128.14 | 126.75 | 67.82 | 66.42 | 7.11 | 5.33 |
| 2-3/4" | 135 | 133.1 | 74.68 | 72.77 | 7.87 | 5.79 |
| 3" | 141.35 | 139.45 | 81.03 | 79.12 | 8.31 | 6.32 |

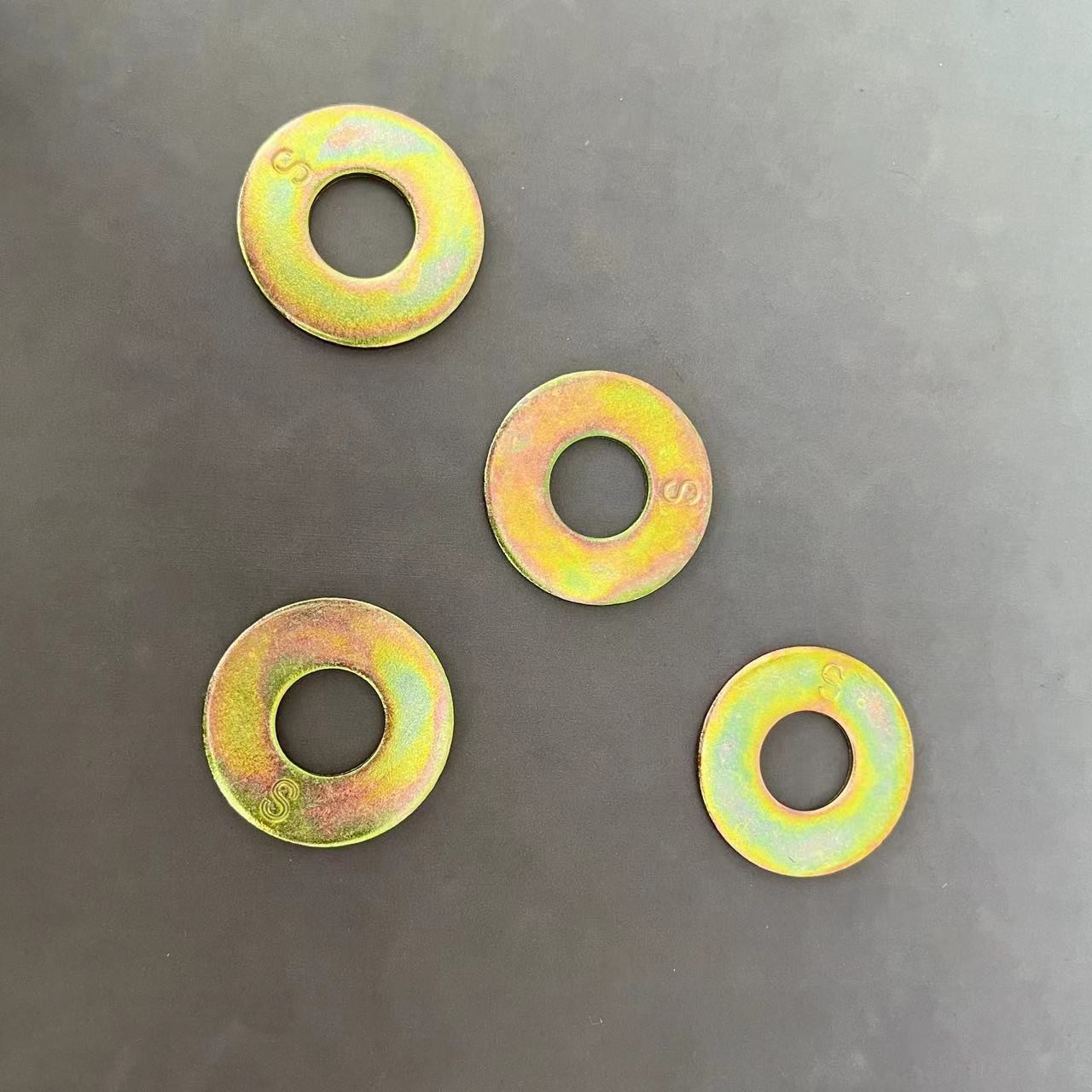

Products pictures for Flat washers
