Standard:DIN6916
Description:
DIN 6916 washers with a black oxide coating are not a standard option. The DIN 6916 standard specifically specifies the material and dimensional requirements for high tensile washers, but it does not include provisions for specific coatings such as black oxide.
Black oxide is a surface treatment process that involves forming a layer of black oxide on the surface of a metal component. It provides enhanced corrosion resistance and a black finish. However, the availability of black oxide coating for DIN 6916 washers may vary depending on the manufacturer or supplier.
If you specifically require DIN 6916 washers with a black oxide coating, it would be best to consult with suppliers or manufacturers who specialize in custom or specialized coatings. They may be able to provide information on whether such a coating option is available for DIN 6916 washers or if there are alternative options that meet your requirements.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

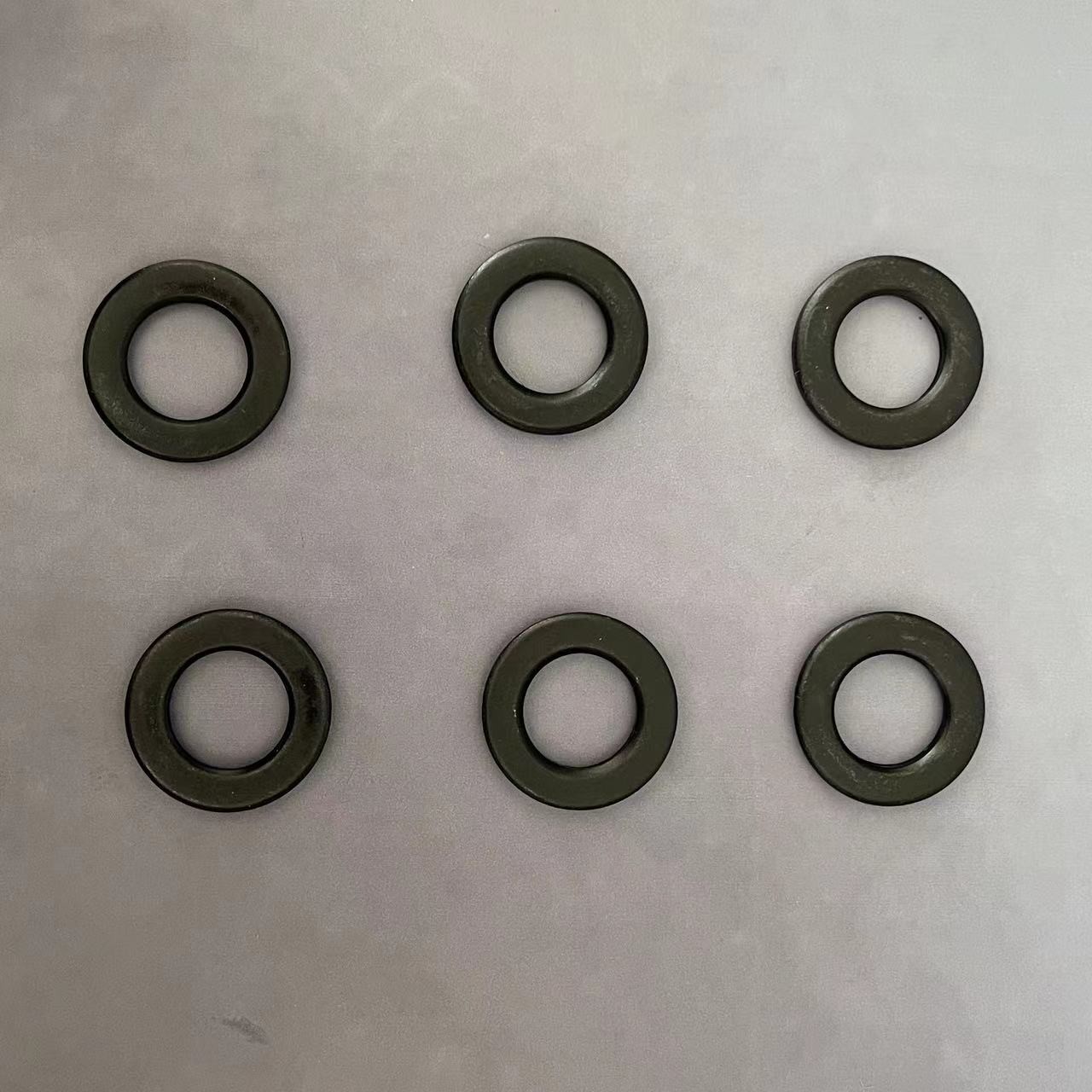

Products pictures for Flat washers
