Standard:DIN6916
Description:
DIN 6916 washers, also known as heavy washers, are designed to provide increased bearing surface and load distribution when used with high-strength structural bolts. The parameters you mentioned, M12-M36, indicate that these washers are available in metric sizes ranging from M12 to M36.
If specified with a "Black Oxide" finish, it means that the washers have undergone a surface treatment process called black oxide coating. This process involves immersing the washers in an alkaline solution at high temperature, which creates a thin layer of black oxide on the surface.
The black oxide coating serves several purposes. It provides a degree of corrosion resistance, although it may not offer the same level of protection as other coatings like hot-dip galvanizing or Dacromet. The black oxide finish also enhances the aesthetic appearance of the washers and provides a certain level of wear resistance.
DIN 6916 washers with a black oxide finish are commonly used in various applications where increased load-bearing capacity, corrosion resistance to some extent, and an appealing black appearance are desired. However, if high levels of corrosion resistance are required, it may be necessary to consider alternative coatings or finishes that offer more robust protection against corrosion.
| Material | 45#/40CR |
| Size | M12-M36 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter (min) |
Inner diameter (max) |
Outside diameter (max) |
Outside diameter (min) |
Thickness (nominal size) |
Thickness (max) |
Thickness (min) |
Inside chamfer (min) |
Inside chamfer (max) |
External chamfer |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
| M30 | 31 | 31.62 |
56 |
54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 |
|
M36 |
37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 |

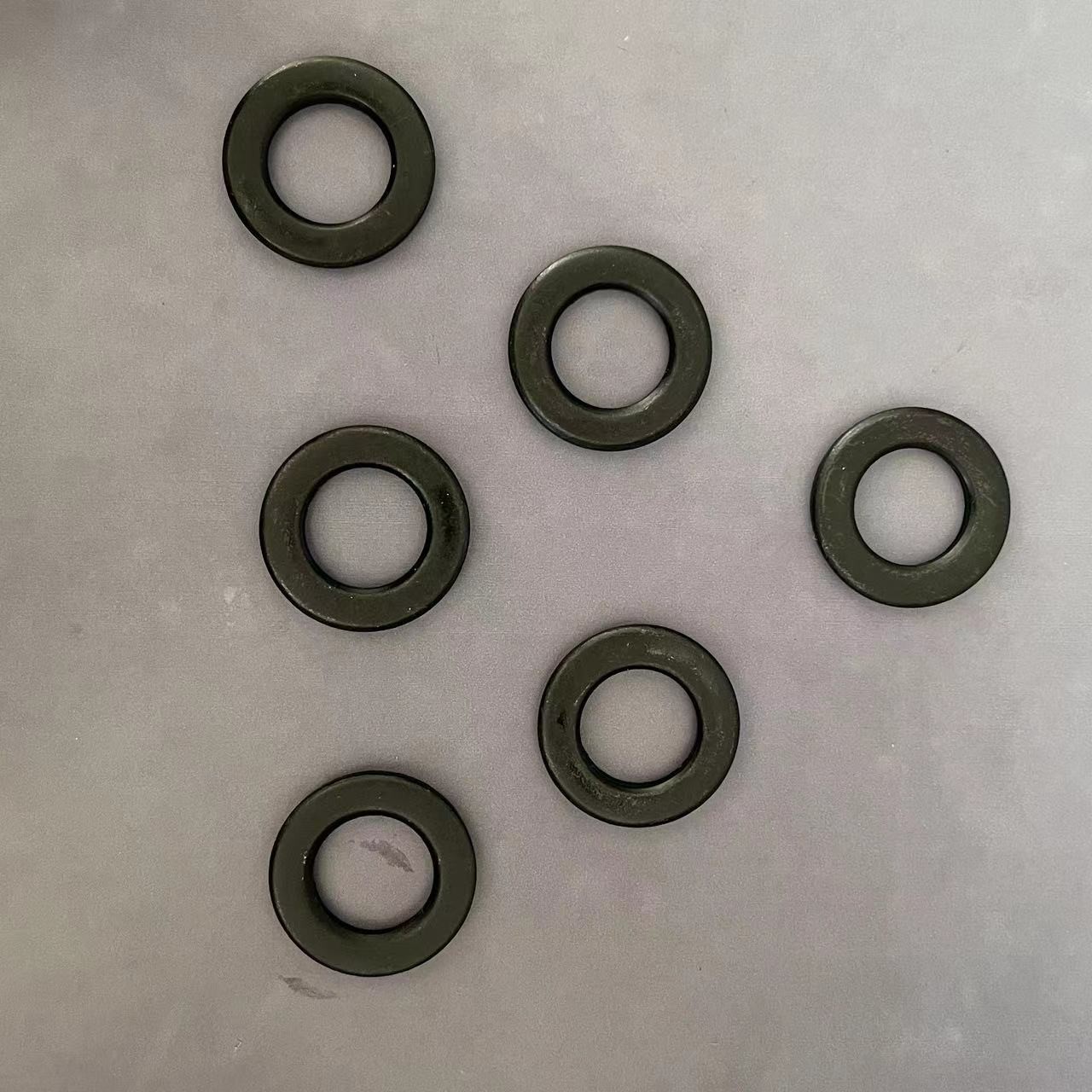

Products pictures for Flat washers
