DIN6340 Washer/Heavy Washer, M6-M30, Zinc plated/HDG

One Pallet For One Size
DIN6340 Washer/Heavy Washer, M6-M30, Zinc plated/HDG
Features Gallery Product Description Request A Quote
Name: DIN6340 Washer/Heavy Washer
Material: S45C/40CR
Size: M6-M30
Finish: Plain/black/ZINC/HDG/Dacromet
Standard: DIN6340
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN6340
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description



      The DIN 6340 standard refers to washers, specifically heavy washers, used in mechanical and structural applications. These washers are designed to distribute the load of a threaded fastener, such as a bolt or a screw, over a larger surface area. The specific parameters you mentioned, M6-M30, refer to the size range of the washers, indicating that they are available in metric sizes ranging from M6 to M30.

      The "Zinc plated" and "HDG" abbreviations refer to different types of surface coatings applied to the washers to provide corrosion resistance. "Zinc plated" means that the washers have been coated with a layer of zinc, which helps protect the underlying metal from rust and corrosion. This coating is typically applied through a process called electroplating.

      On the other hand, "HDG" stands for "Hot-Dip Galvanized." This is a more robust and durable coating compared to zinc plating. In the hot-dip galvanizing process, the washers are immersed in a bath of molten zinc, which forms a thick layer of zinc coating on the surface. Hot-dip galvanized coatings provide excellent corrosion resistance and are commonly used in outdoor and harsh environments.

      In summary, DIN 6340 washers are heavy-duty washers available in metric sizes from M6 to M30. They can be found with either a zinc-plated or hot-dip galvanized coating, depending on the desired level of corrosion resistance needed for the application.




Material 45#/40CR
Size M6-M30
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days



Size Inner diameter(min) Inner diameter(max) Outside diameter(max) Outside diameter(min) Thinkness
M6 6.4 6.75 17 16.57 3
M8 8.4 8.76 23 22.48 4
M10 10.5 10.93 28 27.48 4
M12 13 13.43 35 34.38 5
M16 17 17.43 45 44.38 6
M20 21 21.52 50 49.38 6
M24 25 25.52 60 59.26 8
M30 31 31.62 68 67.26 10

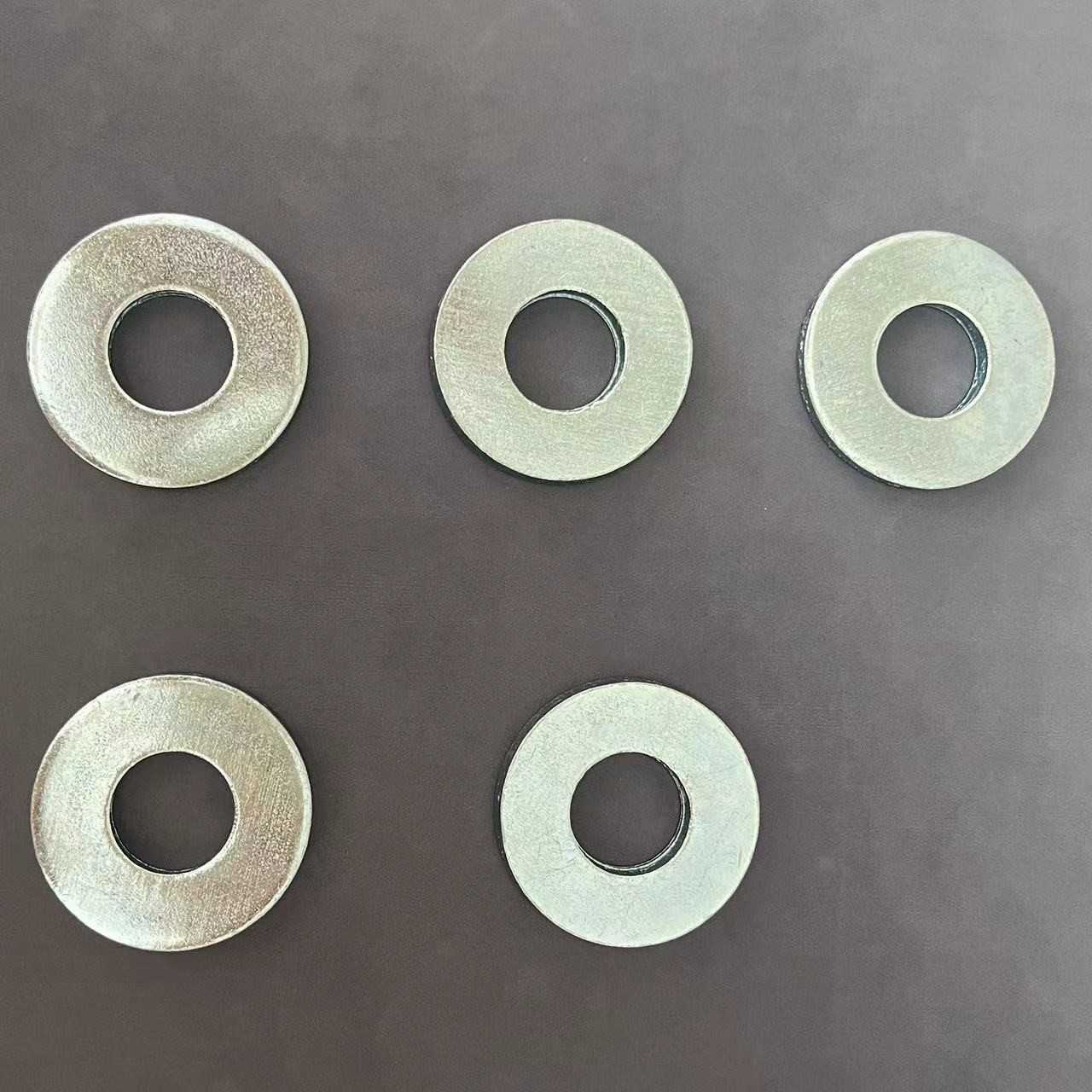

Products pictures for Flat washers

DIN6340 Washer/Heavy Washer, M6-M30, Zinc plated/HDG 0

DIN6340 Washer/Heavy Washer, M6-M30, Zinc plated/HDG 1
