USSHot Dip Galvanized Washer, 1/4" - 3", HDG For Automobile Manufacturing
Standard:USS
Description:
Hot-dip galvanized washers are washers that have undergone a galvanization process where they are immersed in a bath of molten zinc, forming a thick coating of zinc on the surface. This method provides a durable and effective corrosion-resistant layer that protects the washer from rust and deterioration, making them ideal for outdoor and high-moisture environments.
USS (United States Standard) washers are commonly used in North America and are specified by the ASTM F436 standard. They are flat washers with a larger outer diameter compared to SAE (Society of Automotive Engineers) washers. The size range you mentioned, 1/4" to 3", refers to the nominal diameter of the bolt or screw they are designed to work with.
| Material | 45#/40CR |
| Size | 1/4"-3" |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diamater (max) |
Inner diamater (min) |
Outside diamater (max) |
Outside diamater (min) |
Thickness (max) |
Thickness (min) |
| 3/16" |
14.66 |
14.15 | 6.73 | 6.22 | 1.65 | 0.91 |
| 1/4" | 19.02 | 18.47 | 8.31 | 7.8 | 2.03 | 1.3 |
| 5/16" | 22.99 | 22.05 | 9.91 | 9.4 | 2.64 | 1.63 |
| 3/8" | 26.16 | 25.22 | 11.51 | 11 | 2.64 | 1.63 |
| 7/16" | 32.51 | 31.57 | 13.08 | 12.57 | 2.64 | 1.63 |
| 1/2" | 35.69 | 34.57 | 14.66 | 14.15 | 3.35 | 2.18 |
| 9/16" | 38.07 | 37.13 | 16.25 | 15.75 | 3.35 | 2.18 |
| 5/8" | 45.21 | 44.27 | 18.24 | 17.3 | 4.06 | 2.74 |
| 3/4" | 51.56 | 50.62 | 21.39 | 20.45 | 4.5 | 3.1 |
| 7/8" | 57.91 | 56.97 | 24.58 | 23.65 | 4.88 | 3.45 |
| 1" | 64.26 | 63.32 | 27.74 | 26.8 | 4.88 | 3.45 |
| 1-1/8" | 70.61 | 69.67 | 32.51 | 31.57 | 4.88 | 3.45 |
| 1-1/4" | 76.96 | 76.02 | 35.69 | 34.75 | 4.88 | 3.45 |
| 1-3/8" | 83.69 | 82.3 | 39.24 | 37.85 | 5.41 | 3.45 |
| 1-1/2“ | 90.04 | 88.65 | 42.42 | 41.02 | 5.41 | 3.45 |
| 1-5/8" | 96.39 | 95 | 45.59 | 44.2 | 5.41 | 3.89 |
| 1-3/4” | 102.74 | 101.35 | 48.77 | 47.37 | 5.41 | 3.89 |
| 1-7/8“ | 109.09 | 107.7 | 51.94 | 50.55 | 5.41 | 3.89 |
| 2” |
115.44 |
114.05 | 55.12 | 53.72 | 5.41 | 3.89 |
| 2-1/4“ | 121.79 | 120.4 | 61.47 | 60.07 | 6.3 | 4.9 |
| 2-1/2” | 128.14 | 126.75 | 67.82 | 66.42 | 7.11 | 5.33 |
| 2-3/4“ | 135 | 133.1 | 74.68 | 72.77 | 7.87 | 5.79 |
| 3” | 141.35 | 139.45 | 81.03 | 79.12 | 8.31 | 6.32 |

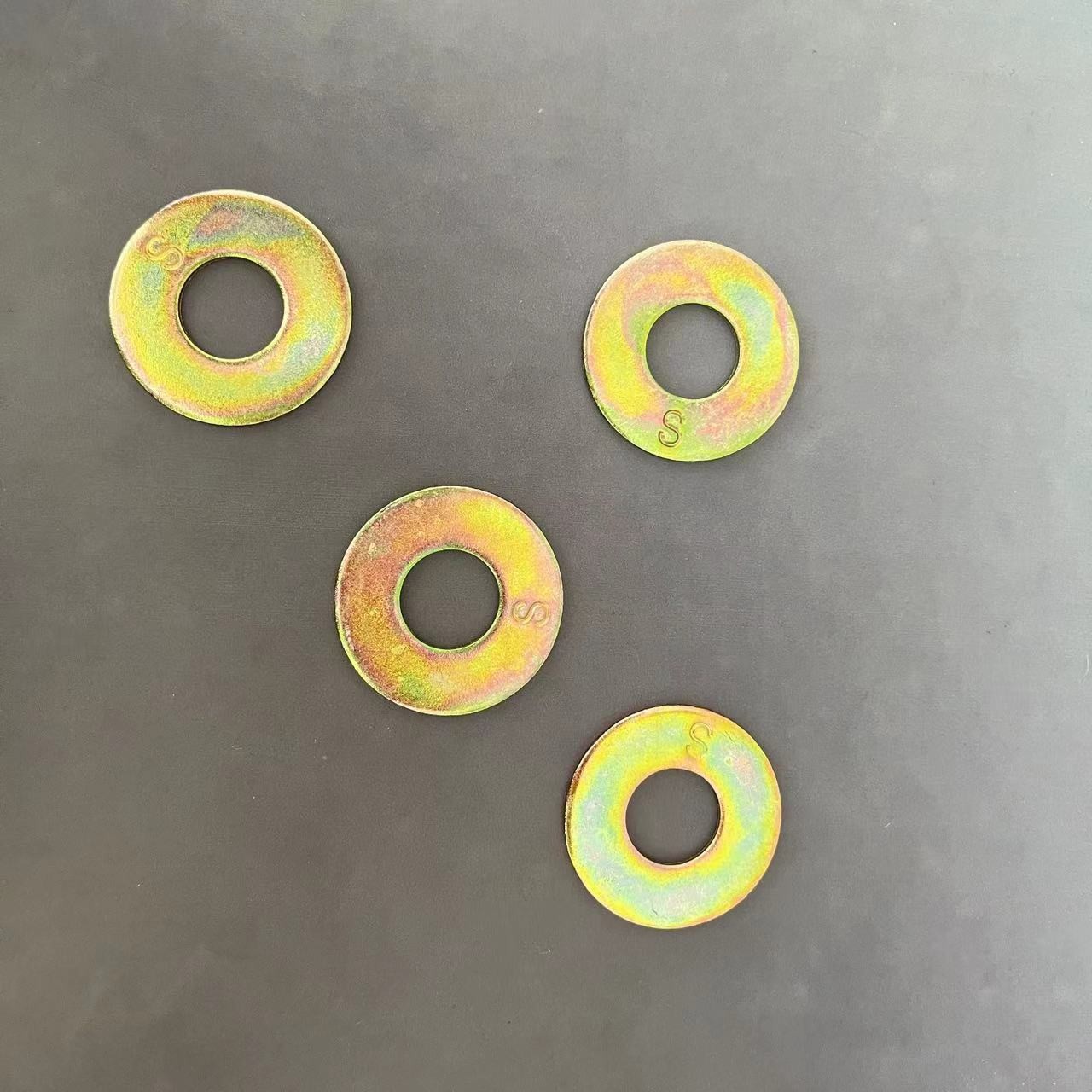

Products pictures for Flat washers
