DIN6340 Washer/Plain Washer, M6-M30, Black Oxide

One Pallet For One Size
DIN6340 Washer/Plain Washer, M6-M30, Black Oxide
Features Gallery Product Description Request A Quote
Name: DIN6340 Washer/Plain Washer
Material: S45C/40CR
Size: M6-M30
Finish: Plain/black/ZINC/HDG/Dacromet
Standard: DIN6340
Hardness: HV300/HRC35-45
Application: Construction, Bridges, Machinery And Automobile Manufacturing
Basic Infomation
Place of Origin: China
Brand Name: YNK
Certification: ISO9001;ISO14001;ISO45001;CE
Model Number: DIN6340
Payment & Shipping Terms
Packaging Details: Pallet
Payment Terms: T/T
Supply Ability: 50T For 1 day
Product Description



      DIN 6340 washers, also known as plain washers, are specified by the DIN 6340 standard. They are used to distribute the load and provide a larger bearing surface when used with bolts or screws. The size range you mentioned, M6 to M30, refers to the metric diameter of the bolt or screw they are designed to work with.

      When specified with a "Black Oxide" finish, DIN 6340 washers have undergone a surface treatment process known as black oxide coating. Black oxide coating, also known as blackening, is a conversion coating that creates a thin layer of black oxide on the surface of the washer.

      The black oxide coating serves multiple purposes. First, it provides a degree of corrosion resistance, although its level of protection may not be as high as that of other coatings like hot-dip galvanizing or zinc plating. Second, the black oxide finish enhances the aesthetics of the washers, giving them a sleek black appearance. Lastly, the black oxide layer can improve the wear resistance and lubricity of the washers, facilitating smooth assembly and operation.

      DIN 6340 washers with a black oxide finish are commonly used in various applications where both functionality and visual appeal are important. They find applications in construction, machinery, automotive, and other industries where high strength, reliability, and an attractive appearance are desired.

      Please note that while black oxide coating provides some corrosion resistance, it may not offer the same level of protection as other specialized coatings. If high levels of corrosion resistance are required, alternative coatings or finishes, such as hot-dip galvanizing or zinc plating, may be more suitable.




Material 45#/40CR
Size M6-M30
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days



Size Inner diameter(min) Inner diameter(max) Outside diameter(max) Outside diameter(min) Thinkness
M6 6.4 6.75 17 16.57 3
M8 8.4 8.76 23 22.48 4
M10 10.5 10.93 28 27.48 4
M12 13 13.43 35 34.38 5
M16 17 17.43 45 44.38 6
M20 21 21.52 50 49.38 6
M24 25 25.52 60 59.26 8
M30 31 31.62 68 67.26 10

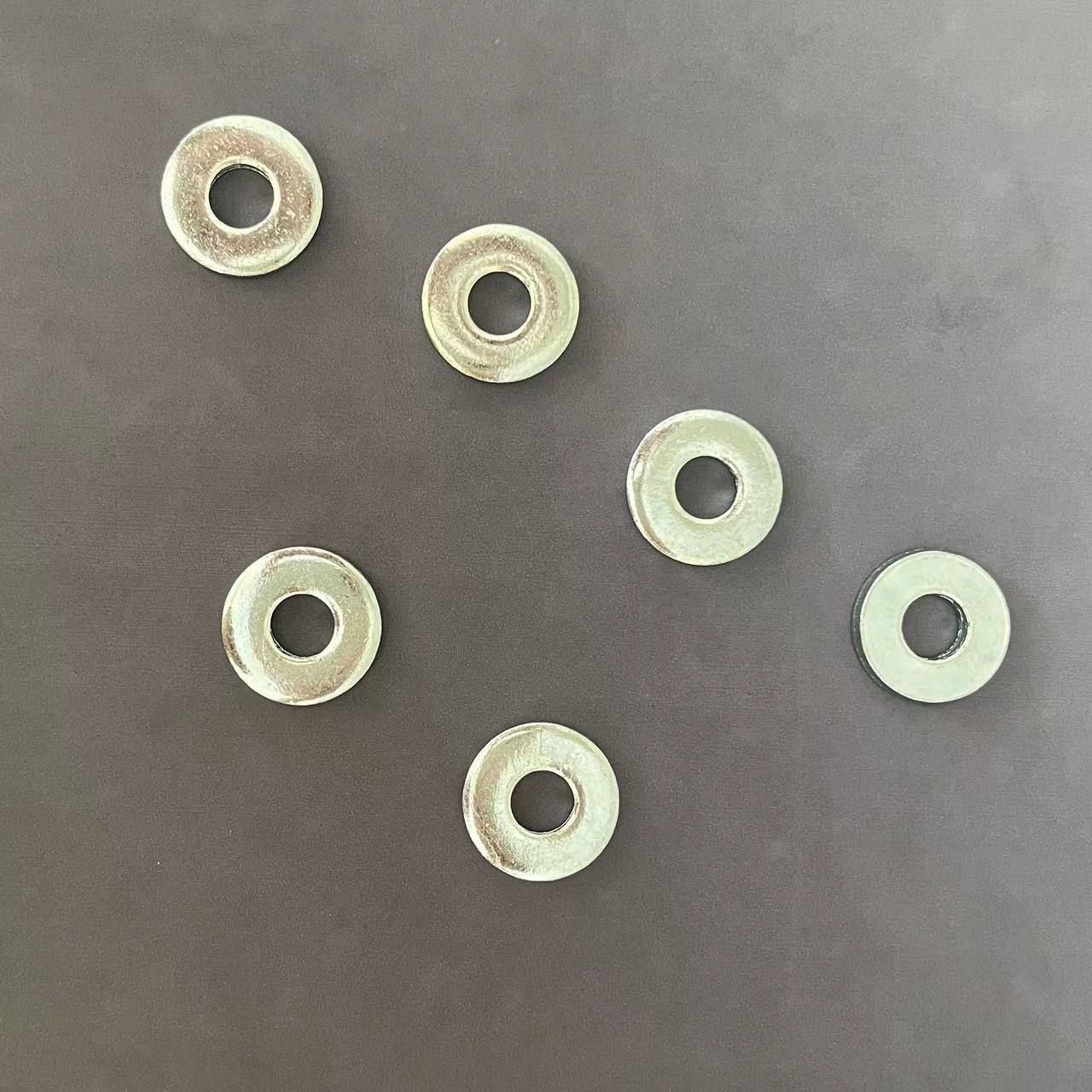

Products pictures for Flat washers

DIN6340 Washer/Plain Washer, M6-M30, Black Oxide 0DIN6340 Washer/Plain Washer, M6-M30, Black Oxide 1
